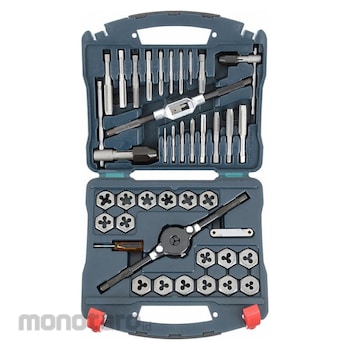

BOSCH Tap & Die Set BTD40S #4-40 Min. Tap Thread Size 1set(40pcs)

Name: BOSCH Tap & Die Set BTD40S #4-40 Min. Tap Thread Size 1set(40pcs)
Brand: BOSCH
SKU: S040233086
Price: 7199900 IDR
Availability: InStock

#Nomor SKU S040233086

BOSCH

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	BTD40S
Unit	1set(40pcs)
UNSPSC	23153305
Number of Pieces	40
Number of Taps	17
Number of Dies in Set	1
Tap Type	Pipe Tap; Plug Taps
Tap Finish	Bright (Uncoated)
Drill Bit Size	#16; #21; #26; #29; #3; #36; #43; #7; 25/64in; 27/64in; 29/64in; 5/16in; F; I; Q; U
Die Material	High Speed Steel
Die Finish	Bright (Uncoated)
Die Shape	Hex
Die Type	Solid
Die Thread Sizes Included	#4-40; Pipe: 1" 1/8-27; #6-32; #8-32; #10-24; #10-32; #12-24; 1/4"-20; 1/4"-28; 5/16"-18; 5/16"-24; 3/8"-16; 3/8"-24; 7/16"-14; 7/16"-20; 1/2"-13; 1/2"-20
Die Hex Size (inch)	1
Case Type	Plastic
Features	General Purpose Jobs
55% Thread Drill Size	#13; #21; #3; #32; 10.20mm; 11.30mm; 11.80mm; 11/32inch; 3.60mm; 3/32inch; 4.25mm; 5.70mm; 8.40mm; 9/32inch; I; W
65% Thread Drill Size	#23; #34; #5; 10.00mm; 11.00mm; 11.60mm; 17/64inch; 2.30mm; 3.50mm; 4.15mm; 4.60mm; 7/32inch; J; P; R; V
75% Thread Drill Size	#21; #25; #36; #7; 11.40mm; 2.20mm; 27/64inch; 3.40mm; 4.45mm; 5.45mm; 5/16inch; 8.50mm; 9.95mm; F; I; U
Die Material Grade	Carbon Steel
Material - Machining	High Speed Steel
Max. Die Thread Size	1/2"-20
Max. Tap Thread Size	1/2"-20
Measurement System	SAE
Min. bore dia.	4-40
Min. Tap Thread Size	#4-40
Tap Sizes Included	#10-24; #10-32; #12-24; #4-40; #6-32; #8-32; 1/2"-13; 1/2"-20; 1/4"-20; 1/4"-28; 3/8"-16; 3/8"-24; 5/16"-18; 5/16"-24; 7/16"-14; 7/16"-20; Pipe: 1" 1/8-27
Tap Chamfer	Plug; Taper
Tap Material	High Speed Steel
Thread Direction	Right Hand
Thread Type	UNC
Thread per Inch	13; 14; 16; 18; 20; 24; 27; 28; 32; 40
Berat (Kg)	2.4
Tanggal Produk Terdaftar	28 March 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The taps and dies in these sets are made from carbon steel. They are an economical choice for internal- and external-threading applications in maintenance operations.

Peringatan

Catatan Penting: Tanpa Garansi
Produk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
