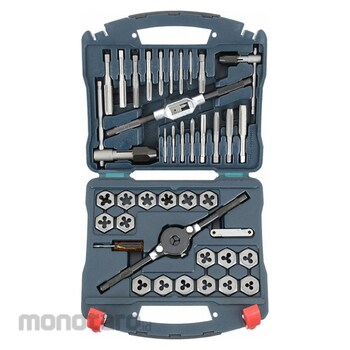

BOSCH Tap & Die Set
#Grup produk P109320427
Kondisi Barang:
Spesifikasi
| UNSPSC | 23153305 |
|---|---|
| 55% Thread Drill Size | #13; #21; #3; #32; 10.20mm; 11.30mm; 11.80mm; 11/32inch; 3.60mm; 3/32inch; 4.25mm; 5.70mm; 8.40mm; 9/32inch; I; W |
| 65% Thread Drill Size | #23; #34; #5; 10.00mm; 11.00mm; 11.60mm; 17/64inch; 2.30mm; 3.50mm; 4.15mm; 4.60mm; 7/32inch; J; P; R; V |
| 75% Thread Drill Size | #21; #25; #36; #7; 11.40mm; 2.20mm; 27/64inch; 3.40mm; 4.45mm; 5.45mm; 5/16inch; 8.50mm; 9.95mm; F; I; U |
| Case Type | Plastic |
| Die Finish | Bright (Uncoated) |
| Die Hex Size (inch) | 1 |
| Die Material | High Speed Steel |
| Die Material Grade | Carbon Steel |
| Die Shape | Hex |
| Die Thread Sizes Included | #4-40; Pipe: 1\" 1/8-27; #6-32; #8-32; #10-24; #10-32; #12-24; 1/4\"-20; 1/4\"-28; 5/16\"-18; 5/16\"-24; 3/8\"-16; 3/8\"-24; 7/16\"-14; 7/16\"-20; 1/2\"-13; 1/2\"-20 |
| Die Type | Solid |
| Drill Bit Size | #16; #21; #26; #29; #3; #36; #43; #7; 25/64in; 27/64in; 29/64in; 5/16in; F; I; Q; U |
| Features | General Purpose Jobs |
| Material - Machining | High Speed Steel |
| Max. Die Thread Size | 1/2\"-20 |
| Max. Tap Thread Size | 1/2\"-20 |
| Measurement System | SAE |
| Min. Tap Thread Size | #4-40 |
| Min. bore dia. | 4-40 |
| Number of Dies in Set | 1 |
| Number of Pieces | 40 |
| Number of Taps | 17 |
| Tap Chamfer | Plug; Taper |
| Tap Finish | Bright (Uncoated) |
| Tap Material | High Speed Steel |
| Tap Sizes Included | #10-24; #10-32; #12-24; #4-40; #6-32; #8-32; 1/2\"-13; 1/2\"-20; 1/4\"-20; 1/4\"-28; 3/8\"-16; 3/8\"-24; 5/16\"-18; 5/16\"-24; 7/16\"-14; 7/16\"-20; Pipe: 1\" 1/8-27 |
| Tap Type | Pipe Tap; Plug Taps |
| Thread Direction | Right Hand |
| Thread Type | UNC |
| Thread per Inch | 13; 14; 16; 18; 20; 24; 27; 28; 32; 40 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The taps and dies in these sets are made from carbon steel. They are an economical choice for internal- and external-threading applications in maintenance operations.
Feature
Tap and Die Set Number of Pieces 40 Die Shape Hex Tap Type Pipe Tap Plug Taps Die Material High Speed Steel Thread Sizes Included M10 x 1.25 M10 x 1.50 M11 x 1.50 M12 x 1.50 M12 x 1.75 M14 x 1.50 M14 x 2.00 M16 x 1.50 M16 x 2.00 M18 x 1.50 M18 x 2.50 M20 x 2.50 M22 x 1.50 M24 x 2.00 M24 x 3.00 M3 x 0.50 M4 x 0.70 M4 x 0.75 M5 x 0.80 M5 x 0.90 M6 x 1.00 M7 x 1.00 M8 x 1.00 M8 x 1.25 M9 x 1.00 M9 x 1.25 Pipe 1/8 In.- 28 BSPUlasan Produk
