Free type of installation. (Can be installed in all directions.)
Since the spring constant is lower than that of coil springs, it can generate almost constant spring force over a long compression stroke, making it ideal for opening and closing doors. It also has a damping effect as well as a spring action, allowing you to reliably control the opening and closing speed of doors.
Gas chamber C is filled with nitrogen gas, which constantly pressurizes oil chamber AB via the free piston, so the piston rod always has a repulsive force in the direction of extension. Therefore, the magnitude of the repulsive force is determined by the internal pressure of gas chamber C.

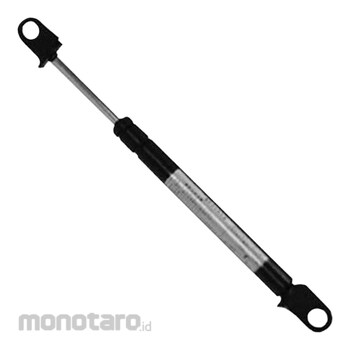

KYB Gas Spring KMF Series KMF70-20 70mm 1pc
Rp1.099.900
Persediaan
Spesifikasi Produk
| Model Number | KMF70-20 |
|---|---|
| Unit | 1pc |
| Dimension L (mm) | 246 (Min) |
| Stroke (mm) | 70 |
| Repulsion Force (N) | (Fa)196, (Fb)253 |
| M Code | 39304142 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 08 March 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Sample image (Please check the specifications of each product number for details)Use
For opening and closing doors such as copy machines, vending machines, commercial vehicles, smoke exhaust windows, and railway-related doors.
