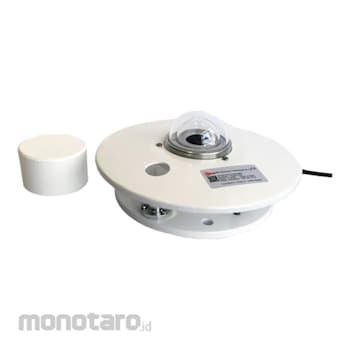

Rika Sensor Total Radiation Recorder RK200-03 1unit
Rp25.999.900
Persediaan
Spesifikasi Produk
| Model Number | RK200-03 |
|---|---|
| Unit | 1unit |
| Spectral Range (nm) | 300-3200 |
| Supply (V/VDC) | 45424 |
| Range (W/m²) | 0-2000 |
| Output | 0-20mV,0-5V,4-20mA,RS485, SDI-12 |
| Sensitivity> (μVXW-W/m²) | 7-14 to 1 |
| Internal Resistance (ohm) | 350 |
| Non-linearity（Accuracy） | ≤±2% of full measurement scale |
| Measuring Angle (π) | 2 Solid Angle |
| Response Time (s) | ≤20 (99%) |
| Zero Drift (W/m²) | ±5 (Temperature drift:5k/h) |
| Stability (per year) | ±2% |
| Cosine correction | ≤±7%(Solar elevation angle=10°) |
| Temperature Effect (°C) | ±2%(-10 to +40) |
| Operating Temperature (°C) | -40 to +80 |
| Recalibration Interval (years) | 2 |
| Desiccant | Silica Gel Desiccant |
| Pack | Aluminium Alloy Instrument Box |
| Dimensions (mm) | 185x120 |
| Ingress Protection | IP65 |
| Storage Temperature Condition (°C) | 10 to 60 |
| Berat (Kg) | 2.5 |
| Tanggal Produk Terdaftar | 13 February 2024 |
| Terakhir Diperbaharui | 07 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The RK200-03 Pyranometer is produced based thermopile principle; sensing elements are made by winding - plated thermopiles with multi contacts.Its surface is coated by black coating with high absorption rate. Hot contacts on the sensors surface, while the cold junction is located within the body,temperature difference between the hot and cold junction generates electromotive force, the thermoelectric effect is proportional to the solar radiation. In order to reduce the ambient temperature effect ,temperature compensation circuit designed here to reduce the effects to products properties.
Feature
Conform to the WMO standard. Suitable for harsh environment. Easy installation. Visual desiccant Window. Low power Consumption. High sensitivity.Ketentuan dan Kondisi Barang
