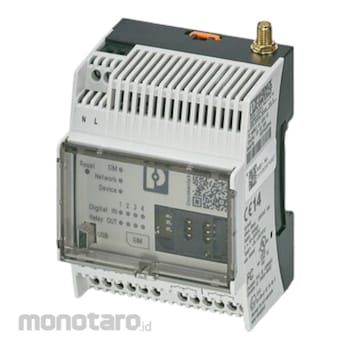

Phoenix Contact SMS Relay 1038568 TC MOBILE I/O X200-4G AC 1pc
Rp14.999.900
Persediaan
Spesifikasi Produk
| Model Number | 1038568 |
|---|---|
| Unit | 1pc |
| Product Type | Signaling system |
| Operating Ambient Temperature (°C) | -25 to 70 (SMS mode only, note the derating information in the technical documentation for data connection) |
| Width (mm) | 72 |
| Mounting Type | DIN rail mounting |
| Height (mm) | 90 |
| Material | Polycarbonate |
| Storage/Transport Ambient Temperature (°C) | -40 to 85 |
| Depth (mm) | 62 |
| Application | I/O |
| Degree of Protection | IP20 |
| Connection Method | Mini-USB type B, 5-pos. |
| Conductor Cross Section Flexible (mm²) | 0.20 to 2.50 |
| Contact Switching Type | N/O contact |
| Altitude (m) | 2000 |
| Stripping Length (mm) | 6.5 |
| Conductor Cross Section Rigid (mm²) | 0.20 to 2.50 |
| Permissible Humidity (Operation) (%) | 0 to 95 |
| Conductor Cross Section Awg | 24 to 14 |
| Tightening Torque (N m) | 0.5 to 0.6 (5-7 lbs-in, screw terminal blocks) |
| Supply Voltage Range (V) | 93 AC to 250 AC (47.5 Hz to 63 Hz) |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 28 September 2023 |
| Terakhir Diperbaharui | 27 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SMS relay and signaling module, European version, monitor digital values via cellular network, switch relay outputs remotely, communication via SMS or cellular network data connection (e-mail transmission, app), supply voltage 93 V ... 250 V AC
