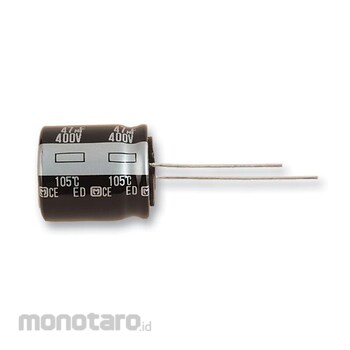

Panasonic Capacitor EEUED2G330S ±20%, Radial Leaded, Polar 33µF; 400V 1pc
Rp30.900
Persediaan
Spesifikasi Produk
| Model Number | EEUED2G330S |
|---|---|
| Unit | 1pc |
| Product Range | ED |
| Lifetime at Temperature (hour) | 10000; at 105°C |
| Product Diameter (mm) | 16 |
| polarity | Polar |
| Lead Spacing (mm) | 7.5 |
| Ripple Current (mA) | 730 |
| Minimum Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 105 |
| Capacitor Case/Package | Radial Leaded |
| Voltage DC (V) | 400 |
| Capacitor Terminals | Radial Leaded |
| Product Height (mm) | 20 |
| Capacitance Tolerance (%) | ± 20 |
| Capacitance (µF) | 33 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 17 July 2023 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The EEUED2G330S is a radial leaded aluminium Electrolytic Capacitor, ED-A series with 400V working voltage.
Feature
<=0.06 CV +10µA (after 2 minutes application of rated working voltage at +20°C) DC leakage current730mA RMS at 100kHz/+105°C Rated ripple current
±20% tolerance
Endurance is 10000h at 105°C
Operating temperature range -25°C to 105°C
Capacitor size varies from 10mmx20mm to 18mmx40mm (DxL)
Use
Power Management, Power Management,
Consumer Electronics,
Portable Devices
