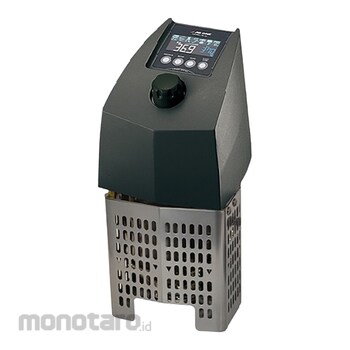

AS ONE Thermax Oil Bath TM-4A 1pc

Name: AS ONE Thermax Oil Bath TM-4A 1pc
Brand: AS ONE
SKU: S036485208
Price: 26999900 IDR
Availability: InStock

#Nomor SKU S036485208

AS ONE

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	TM-4A
Unit	1pc
Temperature Control Accuracy (°C)	±2.0 (Our Company test value)
Body Dimensions (mm)	147x150x295
Clamp Attachable Width (mm)	40
Heater Capacity (kW)	1.2
Sensor Resistance (ohm)	Pt100
Stirring Mechanism	Propeller stirring method
Power Supply (50/60Hz) (VAC)	100
Temperature Adjustment Range (°C)	R.T. + 5 to 180
Temperature Settings Range (°C)	-20.0 to +180
Function	Program (maximum 8 steps), float type no-water burning prevention, buzzer alarm, Variable type temperature excessive rise prevention device
Timer Setting Range	1 minute - 99 hours 59 minutes (1 minute unit)
Package Size (mm)	265x415x190
M Code	52213376
Berat (Kg)	4.3
Tanggal Produk Terdaftar	31 May 2023
Terakhir Diperbaharui	15 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Peringatan

Standar JEPANG.. Produk Elektronik menggunakan POWER SUPPLY standar JEPANG (110V). Mohon tanyakan terlebih dahulu. REKOMENDASI TRAFO : S041707319 (USA), S010836781 (JPN), atau S037607586 (Lokal)
Untuk lebih detail terkait kepastian ketersediaan stok harap menghubungi kami terlebih dahulu.

Warning

Image on this page only as Representative Image, Please check the specifications of each model number for details.

Feature

Jog dial input system is adopted for temperature setting and timer setting.
User can set parameters quickly and correctly.
Regulates temperature accurately by integrated microprocessor PID control method.
Integrates alarm buzzer that informs timing when set temperature/set time is reached.
4 types of timer states (ON・OFF・ON/OFF・SET) are provided as standard.
