• Forged steel - Quenched & Tempered.
• Working Load Limits shown are for in-line pull. For angle loading, see Warnings & Applications.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• Recommended for in-line pull.
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

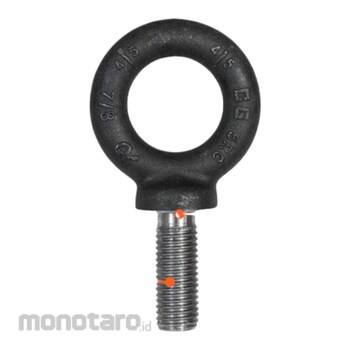

Crosby Eye Bolt M-279 M8x13mm 1pc
Rp629.900
Persediaan
Spesifikasi Produk
| Model Number | M-279 |
|---|---|
| Unit | 1pc |
| Size (mm) | M8x13 |
| Thread | Metric |
| Working load limit (kg) | 400 |
| Dimension A Thread (mm) | M8x1.25 |
| Dimension B (mm) | 13 |
| Dimension C (mm) | 35.1 |
| Dimensions d (mm) | 22.4 |
| Dimension E (mm) | 54.6 |
| Dimension F (mm) | 6.4 |
| Dimension G (mm) | 15 |
| Dimension H (mm) | 24.1 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 24 March 2023 |
| Terakhir Diperbaharui | 23 July 2025 |
