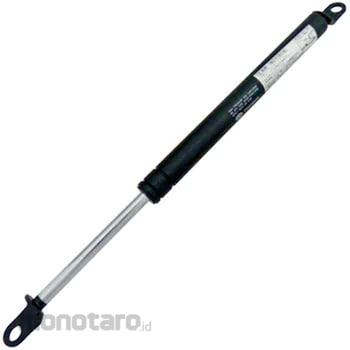

Tochigiya Gas Spring TM-150-100-40 1pc
Rp629.900
Persediaan
Spesifikasi Produk
| Model Number | TM-150-100-40 |
|---|---|
| Unit | 1pc |
| Dimension A (mm) | 386 |
| Dimension B (mm) | 286 |
| Dimension C (mm) | 253 |
| Kegunaan | OA equipment, medical equipment, machine tools, etc. |
| Material | (Body) BSP/Painting (Black), (Rod) SUS304 |
| Surface Treatment | Painted (black) |
| Repulsive Force (N) | Fa (Maximum -10mm): 392.3 (40) Fb (Minimum +10mm): 546.2 (55.7) |
| RoHS Directive | Compatible with 10 substances |
| Stroke (mm) | 100 |
| Operating Temperature (°C) | -20 to 80 |
| Cylinder Diameter (Φmm) | 22 |
| Rod Diameter (Φmm) | 10 |
| Durability | 30.000 times or more |
| Tensile Strength (kN[kgf]) | 4.91 [500] or more |
| M Code | 09327665 |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 15 February 2023 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
A gas spring capable of generating a nearly constant spring force over a long compression stroke.
Warning
1.Do not disassemble or throw into fire.2.Do not apply bending load.
3.Use a gas spring suitable for the weight of the object.
4.Install with the piston rod facing downward.
5.Avoid using in rain or water, or in dusty places.
6.If the door is left open for a long time, install a stopper or auxiliary bar on the door.
7.Do not apply impact to prevent scratches or bending of the piston rod and cylinder.
8.Do not allow foreign matter such as paint or vinyl to adhere to the piston rod.
9.Do not rotate the piston rod and cylinder in the fully extended state. When rotating, do so with the piston rod compressed.
