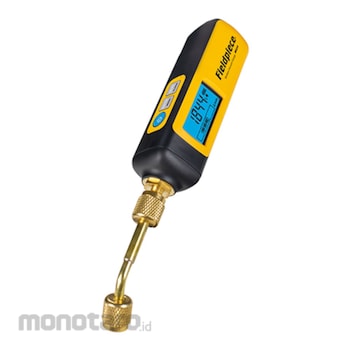

Fieldpiece Wireless Vacuum Gauge MG44 1unit
Rp13.999.900
Persediaan
Spesifikasi Produk
Model Number | MG44 |
---|---|
Unit | 1unit |
Minimum Device Requirement | BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 |
Connector Type | 1/4" SAE male fitting |
Accuracy (%) | ±(5of reading + 5 microns) at 77℉ (25℃), 50 to 2000 microns |
Range | 50 to 25000 microns of mercury, 6 to 3333 Pascals, 0.06 to 33.33 mBar, 50 to 25000 mTorr, 0.05 to 25 Torr |
Units | microns of mercury (English), Pascals (Metric), mBar (Metric), mTorr (Metric), Torr (Metric, equivalent to mmHg) |
Best Resolution | 1 micron of mercury (below 2000 microns), 1 Pascal (below 250 Pascals), 0.001 mBar (below 2.5 mBar), 1 mTorr (below 2000 mTorr), 0.001 Torr (below 2.5 Torr, equivalent to mmHg) |
Battery Type | 2 x AA Alkaline, NEDA 15A, JIS UM3, IEC LR6 |
Battery Life | 40 hours typical alkaline |
Auto Power-off | 15 minutes default (APO adjustable) |
Wireless Range (ft) | 1000 (305 meters) line of sight. Obstructions affect distance |
Radio Frequency ( GHz) | 2.4 |
Water Resistance | IP54 |
Operating Temperature (°C) | -10 to 50 |
Operating Humidity (%RH) | <75 |
Storage Temperature (°C) | -20 to 60 |
Storage Humidity (%RH) | 0 to 80 (with batteries removed) |
Berat (Kg) | 0.4 |
Tanggal Produk Terdaftar | 03 February 2023 |
Terakhir Diperbaharui | 27 May 2025 |
Informasi Produk
Description
MG44 - Wireless Vacuum GaugeRugged, accurate and wirelessConfidently perform evacuations with a reliable, leak-proof seal.Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.There are three ways to use: Stand Alone, Job Link System App & SMAN Manifold ScreenThere are three ways to view: Rate, Bar Graph & Rate MeterIP54-rated weather-resistant.Rugged over-molded construction for extreme impact resistance.A2L compatibleDesigned for the field.Like every piece of Fieldpiece hardware, the Wireless Vacuum Gauge (MG44) is built to make your work easier. It helps eliminate misleading measurements by allowing you to connect it at the system port - even those awkward, hard-to-reach spots. It’s also housed in a rugged impact- and weather-resistant case.Install anywhere - even one-handed.The new, smaller cylindrical shape of the Wireless Vacuum Gauge, its no-slip grip, and the addition of a reversible angled coupler-mean the MG44 is easy to manipulate and install in the toughest spots.Three ways to use.Stand AloneJob Link System AppSMAN Manifold ScreenThree ways to view.RateBar GraphRate Meter Pick up a wireless vacuum gauge right now.
