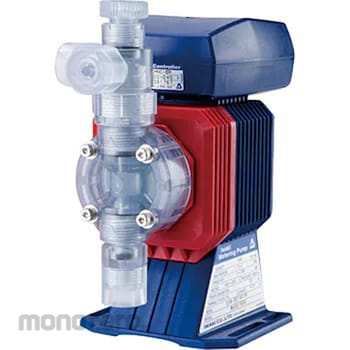

IWAKI Electromagnetic Metering Pump EHN series EHN-B11VCMR 1unit

Name: IWAKI Electromagnetic Metering Pump EHN series EHN-B11VCMR 1unit
Brand: IWAKI
SKU: S035209027
Price: 16999900 IDR
Availability: InStock

#Nomor SKU S035209027

IWAKI

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	EHN-B11VCMR
Unit	1unit
Maximum Discharge Volume (ml/minute)	38
Maximum Discharge Pressure (MPa)	1
Hose Diameter (Φmm)	4×9 or 4×6
Power Supply Voltage (V)	AC100～240 50/60Hz single phase
Liquid Temperature Range (°C)	0-40
Accessories	Check valve (CA-1), blade hose (Φ4 x Φ9 PVC 3m)
Material	Pump Head/PVC, Valve/Alumina Ceramics, Valve Seat/FKM, Valve Guide/PVC, Gasket/PTFE, O-ring/FKM, Diaphragm/PTFE+EPDM (EPDM is not wetted)
Power Consumption (W)	20
Display	LCD 4 digits Operation status, setting value, etc.
M Code	26574092
Berat (Kg)	5.0
Tanggal Produk Terdaftar	20 January 2023
Terakhir Diperbaharui	21 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The EHN series is a diaphragm type electromagnetic metering pump equipped with a free power supply and a multi-function digital controller.
Specification :
A new multi-joint structure has been adopted.
A special nut eliminates twisting when connecting tubes.
Control function :
(Controller) Setting: Manual/Stroke number 1 to 360 spm, EXT/Digital input operation Counter 1: nn = 1 to 999, Division n: 1 n = 1 to 999
Setting method: 3 operation keys, STOP: Contact input Pump stop (It is also possible to operate the pump at contact input by changing the controller settings.)

Peringatan

PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.
