The EHN series is a diaphragm type electromagnetic metering pump equipped with a free power supply and a multi-function digital controller.
Specification :
A new multi-joint structure has been adopted.
A special nut eliminates twisting when connecting tubes.
Control function :
(Controller) Setting: Manual/Stroke number 1 to 360 spm, EXT/Digital input operation Counter 1: nn = 1 to 999, Division n: 1 n = 1 to 999
Setting method: 3 operation keys, STOP: Contact input Pump stop (It is also possible to operate the pump at contact input by changing the controller settings.)

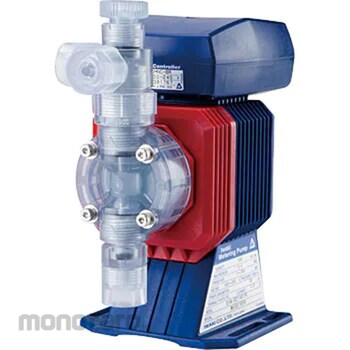

IWAKI Electromagnetic Metering Pump EHN series
#Grup produk P107824044
Spesifikasi
| Maximum Discharge Volume (ml/minute) | 38 |
|---|---|
| Maximum Discharge Pressure (MPa) | 1 |
| Hose Diameter (Φmm) | 4×9 or 4×6 |
| Liquid Temperature Range (°C) | 0-40 |
| Accessories | Check valve (CA-1), blade hose (Φ4 x Φ9 PVC 3m) |
| Display | LCD 4 digits Operation status, setting value, etc. |
| Material | Pump Head/PVC, Valve/Alumina Ceramics, Valve Seat/FKM, Valve Guide/PVC, Gasket/PTFE, O-ring/FKM, Diaphragm/PTFE+EPDM (EPDM is not wetted) |
| Power Consumption (W) | 20 |
| Power Supply Voltage (V) | AC100～240 50/60Hz single phase |
