Mitutoyo Pengukur Ketebalan Dial 7301A 10/0.01mm 1unit
Rp1.499.900
Persediaan
Spesifikasi Produk
| Model Number | 7301A |
|---|---|
| Unit | 1unit |
| Size (mm) | 10/0.01 |
| Accuracy (mm) | ±0,015 |
| Contact Point (mm) | Thread M 2.5x0.45 |
| Units | Metric |
| Parallelism (µm) | 5 |
| Graduation (mm) | 0.01 |
| Indicator No | 2,046AB |
| Maximum Measuring Depth (mm) | 30 |
| Range | 0-10 |
| Type | Ceramic Disc Contact Points |
| Functions | Ceramic Disc Contact Points |
| Measuring Force (N) | ≤1.4 |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 02 December 2022 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

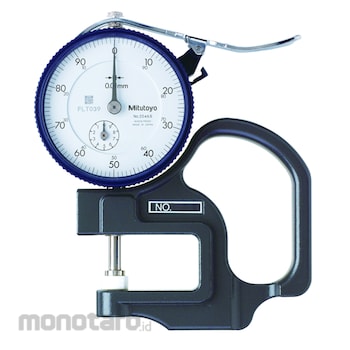

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.
Feature
The dial thickness gauge can quickly measure the thickness of small parts, paper, felt, etc. with one touch. Since the probe and anvil use ceramic, there is no need to worry about rust. (Excluding No547-401) The dial gauge is formed by integrally molding the outer frame and the oiled board, so there is no worry of water or oil entering from the front.Ketentuan dan Kondisi Barang
