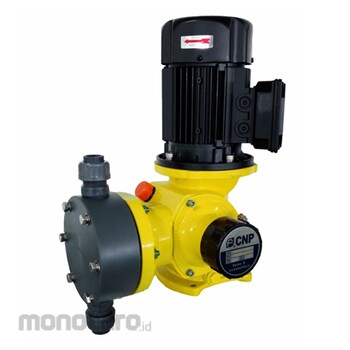

CNP Metering Dosing Pump GM Series Single Phase GM0025 PVC 0.37kW-22LPH 1unit

Control mode
Electric stroke controller,accept external control signal, adjust stroke length
- Power supply: 220V-50Hz-single phase
- Input signal: 4-20mA analog signal
- Output signal: 4-20mA/1~5V analog signal,for records shown and control system usage

Variable frequency controller,accept external control signal,adjust stroke speed
- Power supply: 220V-50Hz-single phase/380-50Hz-th ree phase
- Input signal: 4-20mA analog signal

Motor controller,control three phase motor with mode "run/stop",adjust output flow
- Power supply: 200~240V-50/60Hz-single phase
- Control mode: can accept 4-20mA analog signal,external pulse signal or manual adjustment

Accessory
Provide system required accessories as: Filter,Adjusting pillar,Buffer,Safety valve and Back pressure valve etc.,Safety valve is mandatory. (GM0002-GM0050 range and pump with PVC/PVDF pump head,along with the dosing pump to provide injection valve, foot valve,counter weight and 6 meters tube,except the high viscosity pump head)

Standard configuration motor performance parameters
Power supply: 380V-50Hz-three phase/220V-50Hz-single phase
Protection grade:IP55
Insulation class: F
Explosion-proof motor,60Hz motor can be chosen.AII the motors accord with international electrical association IEC
standard or US electrical committee NEC standards
