PushOne™ E Series
PushOne™ fittings for general air pressure (flame-resistant)
Nitta Moore Y Union EYB8-8 1pc
Rp67.000
Persediaan
Spesifikasi Produk
| Model Number | EYB8-8 |
|---|---|
| Unit | 1pc |

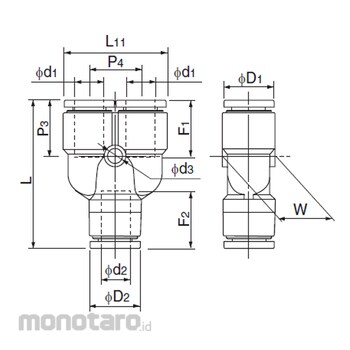

| d1 Applicable tubing outer diameter (mm) | 8 |
| d2 Applicable tubing outer diameter (mm) | 8 |
| Dimension L (mm) | 42.9 |
| Dimension L11 (mm) | 28.8 |
| F1 Tubing insertion length (mm) | 16 |
| F2 Tubing insertion length (mm) | 16 |
| Dimensions p3 (mm) | 16.4 |
| Dimensions p4 (mm) | 14.2 |
| Dimension W (mm) | 14.6 |
| Dimension D1 (mm) | 14.6 |
| Dimension D2 (mm) | 14.6 |
| Dimension D3 (mm) | 4.2 |
| Min. inner diameter (mm) | 7.0 |
| Effective Section Area (mm²) | 18 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 22 November 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- PushOne connection of tubingThe tubes can be connected without using a jig or tools.
- Electroless nickel plated
Prevents degradation of surface and dissolution of copper ions in fluid.
- Flame-resistant resin (compliant with V-0 of UL94 standard)
Made of flame-resistant resin PBT. High self-extinguishing performance is compliant
with V-0 of UL94 standard. Usable under an environment with spatters.
- Sealing-processed R thread
Sealing tape is not required.
