QuickSeal Series
Insertion Type (brass)
Screw-in type for multi-purpose piping

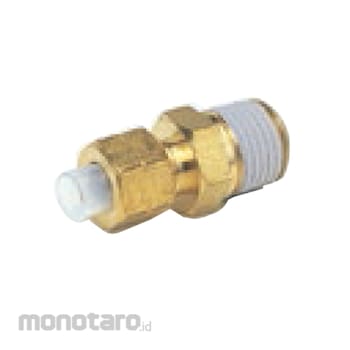

Nitta Moore Connector C1N3/8-PT1/4 1pc
Rp39.900
Persediaan
Spesifikasi Produk
| Model Number | C1N3/8-PT1/4 |
|---|---|
| Unit | 1pc |
| Applicable tubing outer diameter (inch) | 3/8 |
| T Thread size (R) | R1/4 |
| Dimension L (mm) | 30.7 |
| Dimension A (mm) | 12 |
| Dimension S (mm) | 4.6 |
| F Tubing insertion length (mm) | 17 |
| H1 Width across flat (mm) | 14.0 |
| H2 Width across flat (mm) | 17.0 |
| Dimension D1 (mm) | 7.5 |
| d2 Min. inner diameter (mm) | 5.7 |
| Effective Section Area (mm²) | 22.5 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 22 November 2022 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Screw-in typeConsisting of three parts: fitting body, nut and sleeve.
- High sealing performance
The insertion part is integrated with a fitting body with high negative-pressure
performance.
- Only the connector is sealed
Sealing tape is not required.
- JIS B 8381-1995 (fittings for pneumatic flexible pipes) compliant
