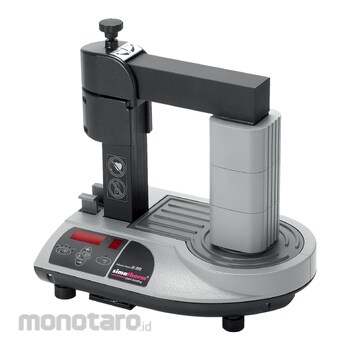

Medium-sized heater for bearings up to 150 kg :
The medium-sized simatherm induction heater for roller bearings and other circular metal workpieces up to 400 mm bore diameter and a cross section of 145 x 205 mm. With the integrated time and temperature controls, roller bearings can be heated to the prescribed 110°C while other circular metal workpieces can be heated to 250°C.
-Three yokes included
-Very compact design – including the three yokes, only
38 kg overall weight
-Swivel arm
-Other power versions are available upon request
Description of IH 090 :
1.Clear control panel with LED-display
2.Heating surface
3.Induction coil outside of the housing shortens the heating time and reduces the energy usage
4.Support yoke (three yokes included)
5.Magnetic temperature probe for monitoring the bearing temperature and for preventing overheating
6.Swivel arm
7.Cooling fan
8.Main switch
SIMATHERM Induction Heater IH 090 1unit
Rp189.999.900
Persediaan
Spesifikasi Produk
| Model Number | IH 090 |
|---|---|
| Unit | 1unit |
| Designation | Heater With Cooling Fan For continuous Operation With Small to Medium Workpieces |
| Voltage (V/Hz/kVA) | (400/50/6.4), (440-480/50-60/7.4), (575/60/9.2) |
| Maximum Weight (kg) | 150 |
| Bore Diameter (mm) | 20 - 400 |
| Temperature Control Range (°C) | 0 - 250 |
| Magnetic Probe | Yes, Type K |
| Accuracy (°C) | ±3 |
| Time Control Range (minute) | 0 - 60 |
| Accuracy (s) | ± 0.01 |
| Maximum Temperature (°C) | approx. 250 |
| Thermometer Mode | Yes |
| Bearing Temperature Mode | Yes |
| Power Reduction (%) | 4 levels / 20-40-60-80 |
| Automatic Demagnetization | Yes / < 2A/cm |
| Suitable for Heating Sealed Bearings | Yes |
| Suitable for Heating Pre-Greased Bearings | Yes |
| Error Guide Codes | Yes |
| Thermal Overload Protection | Yes |
| Maximum Magnetic Flux (T) | 1.5 |
| Dimensions (LxWxH) (mm) | 420x280x420 |
| Berat (Kg) | 38.0 |
| Tanggal Produk Terdaftar | 07 November 2022 |
| Terakhir Diperbaharui | 15 September 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Features and Dimensions IH 090 :-Can heat bearings weighing 90 kg in 20 minutes from
20°C to 110°C, saving time and energy
-4 different power consumption levels, along with smaller yokes, allow smaller bearings to be heated quickly and efficiently with less energy
-A pre-selected temperature of 110°C protects bearings from overheating
-Automatic demagnetization
-Delivered in a reusable wooden crate upon request
-3 year manufacturer warranty
