12V Car Supplies Can Be Used By Converting The DC24V Power Supply Of The Truck To → DC12V.
[Memory Power Supply]
Maintains Memory Functions Such As Car Audio. (The Power Switch Of This Product Is Always On)
[Protection Circuit]
Input Side Overvoltage Protection Circuit
Input Side Low Voltage Protection Circuit
Input Side Reverse Connection Protection Circuit (Fuse)
[Equipped With 3 Output Terminals]
Accessory Socket (With Protective Cap) )
Car Plug Type Dedicated DC12V Output Terminal
Land Type Terminal Output Terminal For Power Supply Of Car Audio, Etc.
Usb Port Output Terminal For Power Supply Of Portable Digital Player, Etc.
[With Cooling Fan (ED-160/320 Only)]

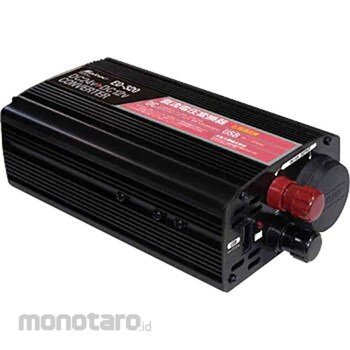

DAIJI INDUSTRY (Meltec) DC DC Converter ED-320 32A 1pc
Rp2.099.900
Persediaan
Spesifikasi Produk
| Model Number | ED-320 |
|---|---|
| Unit | 1pc |
| Rated Input Voltage (V) | DC24 |
| Rated Output Voltage (V) | DC12.8±0.2 |
| Operating Temperature Range (°C) | 0-40 |
| Output | (USB) 5V/1000mA, (Memory) Max. 6.5A, (Acc Socket Output) 10A Or Less |
| Rated Output Current (A) | 30 |
| Dimensions (Width W x Height H x Depth D) (mm) | 90×51×189 |
| Protection circuit | Built-In Input Current Protection Circuit (Fuse), Built-In Overload Protection Circuit, Built-In Overvoltage Protection Circuit |
| Fuse Capacity (A) | 20 (Cord Part Holder) |
| Output Terminal | (3 Systems) ACC Socket, Land Terminal, USB Port |
| Standby Current | (At No Load) Off/30mA, On/150mA |
| Output Current (A) | (Maximum Moment) 32 |
| M Code | 41002586 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 01 November 2022 |
| Terakhir Diperbaharui | 15 August 2025 |
