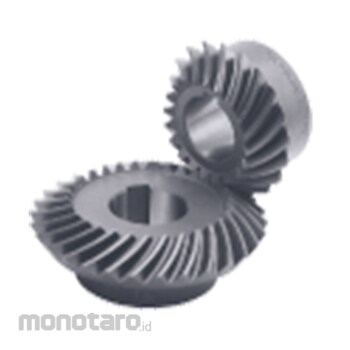

KHK Finished Bore Spiral Bevel Gear MBSB3-4020R 1pc

#Nomor SKU S034012321

Spesifikasi Produk

Model Number	MBSB3-4020R
Unit	1pc
Gear accuracy	JIS B 1704:1978 Grade 4
Number of Teeth	40
Torsion Angle (°)	35
Twist direction	R
Shape	B4
Hole Diameter (mm)	35
Boss Diameter (mm)	65
Standard Circle Diameter (mm)	120
Tip Circle Diameter (mm)	121.57
Face Width (mm)	20
Boss Chief (mm)	21
Tooth Profile	Gleason
Pressure Angle (°)	20
Module	3
Surface Hardness	55-60HRC
Gear Ratio	2
Material	SCM415
Tooth Surface Finish	Cutting
Gear Reference Surface	Hole (H7)
Heat treatment	Whole surface carburizing and quenching
Backlash (mm)	0.08～0.18

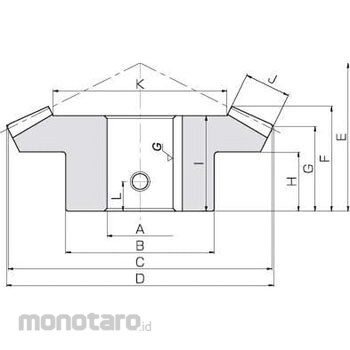

Dimension L (mm)	11
Hole Diameter A (Φmm)	35(H7)
Hub Diameter (Φmm)	65
Modules	3
Reduction Ratio	2
Screw Hole	M8
Spesifikasi	There is a tap (screw hole) on the keyway (* When using a tap on the keyway, the key will not be loose or the shaft will not be damaged.)
Teeth Ratio	2
Tooth Width (mm)	20
M Code	38007505
Berat (Kg)	1.4
Tanggal Produk Terdaftar	07 October 2022
Terakhir Diperbaharui	24 November 2025
