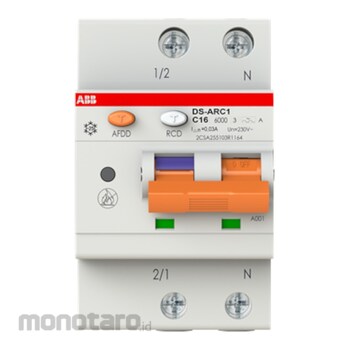

ABB Arc Fault Detection Device Integrated with RCBO DS-ARC1 C16 A30 1pc

Name: ABB Arc Fault Detection Device Integrated with RCBO DS-ARC1 C16 A30 1pc
Brand: ABB
SKU: S032540321
Price: 4099900 IDR
Availability: OutOfStock

#Nomor SKU S032540321

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	DS-ARC1 C16 A30
Unit	1pc
Number of Poles	2
Connecting Capacity (mm²)	Busbar 10, Rigid 1-25, Flexible 1-25
Built-in Depth (mm)	69
Auxiliary Voltage AC/DC (V)	230
Frequency (Hz)	50
Energy Limiting Class	3
Dielectric Test Voltage (kV)	2.5
Electrical Endurance (cycle)	10000
Mechanical Endurance (cycle)	20000
Cable Size (mm²)	25
Fault Indication	Blue flag on toggle
Housing Type	Insulation group I, RAL 7035
Leakage Current Type	A
Mounting Position of Accessories	Right
Accessory Type	Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Undervoltage release, Overvoltage release, Auxiliary contact for bottom fitting
Actuator Type	Toggle - Insulation group II, Orange RAL 2004, sealable in ON-OFF-positions
Contact Position Indication	Red ON / Green OFF
Mounting Position	Any
Number of Protected Poles	1
Berat (Kg)	0.2
Tanggal Produk Terdaftar	16 July 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

DS-ARC1 C16 A30 Arc fault detection device integrated with RCBO
DS-ARC1 is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for the protection against earth arc faults, parallel arc faults, series arc faults, overvolatge, short-circuit currents, overload, earth fault currents
