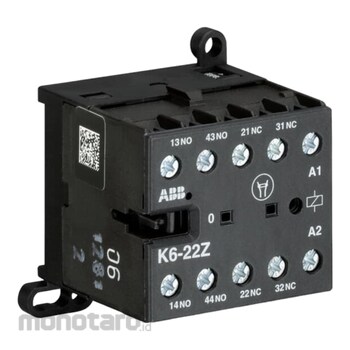

ABB Mini Contactor Relays K6-22Z-84 1pc

Name: ABB Mini Contactor Relays K6-22Z-84 1pc
Brand: ABB
SKU: S032530940
Price: 269900 IDR
Availability: InStock

#Nomor SKU S032530940

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	K6-22Z-84
Unit	1pc
Number of Poles	4
Product Depth/Length (mm)	46.5
Product Height (mm)	57.5
Product Width (mm)	52.5
Rated Control Circuit Voltage (V)	110-127 AC
Rated Frequency (Hz)	Auxiliary Circuit 50, Auxiliary Circuit 60, Auxiliary Circuit DC, Control Circuit 400, Control Circuit 50, Control Circuit 60, Main Circuit 60, Main Circuit 50, Main Circuit DC
Minimum Switching Capacity (V/mA)	17/5
Rated Impulse with Stand Voltage (kV)	Auxiliary Circuit 6
Mini Contactor Type	Mini Contactor Relay
Mounting on DIN Rail (mm)	TH35-15 (35x15 Mounting Rail) acc. to IEC 60715, TH35-7.5 (35x7.5 Mounting Rail) acc. to IEC 60715
Mounting Position	1-6
Power Loss (W)	at Rated Operating Conditions per Pole 0.32
Mechanical Durability (cycle)	10000000
Coil Consumption	Average Holding Value 50 Hz 3.5 VA, Average Pull-in Value 50 Hz 3.5 VA
Mounting Type	DIN-Rail, Screw
Number of Auxiliary Contacts NC	2
Low Coil Consumption	No
Number of Auxiliary Contacts NO	2
Number of Main Contacts NC	-
Berat (Kg)	0.1
Tanggal Produk Terdaftar	14 July 2022
Terakhir Diperbaharui	12 November 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

K6-22Z-84 Mini Contactor Relay 110-127V 40-450Hz
The K6-22Z mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
