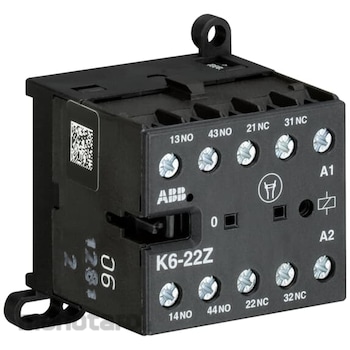

K6-22Z-01 Mini Contactor Relay 24V 40-450Hz
The K6-22Z mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
ABB Mini Contactor Relays
#Grup produk P106983173
Spesifikasi
| Low Coil Consumption | No |
|---|---|
| Mechanical Durability (cycle) | 10000000 |
| Mini Contactor Type | Mini Contactor Relay |
| Minimum Switching Capacity (V/mA) | 17/5 |
| Mounting on DIN Rail (mm) | TH35-15 (35x15 Mounting Rail) acc. to IEC 60715, TH35-7.5 (35x7.5 Mounting Rail) acc. to IEC 60715 |
| Mounting Position | 1-6 |
| Mounting Type | DIN-Rail, Screw |
| Number of Main Contacts NC | 0 |
| Number of Poles | 4 |
| Power Loss (W) | at Rated Operating Conditions per Pole 0.32 |
| Product Depth/Length (mm) | 46.5 |
| Product Height (mm) | 57.5 |
| Product Width (mm) | 52.5 |
| Rated Impulse with Stand Voltage (kV) | Auxiliary Circuit 6 |
