Independent day-of-week key adoption greatly improves operability.
Equipped with a holiday setting function that easily turns off the output of holidays and holidays.
Can be set even when the power is off.
Test mode for easy program confirmation.
Conforms to UL / CSA, Electric Safety Law standards, and EMC standards.
The set value can be changed in the down direction, realizing speed setting!
Built-in time counter / total counter.
Equipped with a puncture function that can switch programs by external input.
Built-in temperature compensation circuit that realizes high clock accuracy over a wide temperature range.

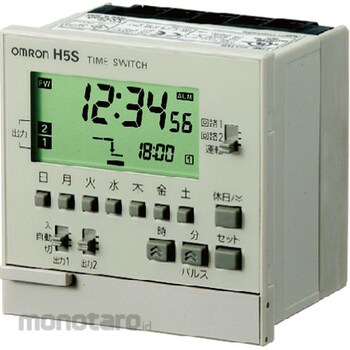

OMRON Digital Time Switch H5S (Timer Digital) H5S-YA2D-X 1pc
Rp6.399.900
Persediaan
Spesifikasi Produk
| Model Number | H5S-YA2D-X |
|---|---|
| Unit | 1pc |
| Type | 2ch per year |
| Accuracy | (Watch) Temperature compensation |
| Type of Operation | Digital quartz system |
| Power Consumption | About 0.9W (at DC28.8V) |
| Case Color | Light gray (Munsell 5Y7 / 1) |
| Power Supply Voltage (V) | DC24 |
| Control Output | Number of circuits: 2 independent circuits (2a)<br> Circuit: Power supply circuit and separate circuit (no voltage)<br> Capacity: Resistance not possible AC250V 15A (cosΦ=1), induction not possible AC250V 10A (cosΦ=0.7) |
| Time | 1 cycle: 1 year (built-in calendar up to 2099) |
| Insulation Resistance (MΩ) | 100 or more Between conductive part terminals and exposed non-charged metal parts, between operation power supply circuit and control output, between control outputs, between non-continuous contacts |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| Type of Terminal Fitting | Embedded mounting |
| Influence of Voltage | ± 0.01% ± 0.05s or less ± 0.01% is the value for the set time interval |
| Vibration Resistance (Destruction) | 10 to 55Hz, single amplitude 0.375mm, 3 directions, 2ch each |
| Impact Resistance Durability (m/s²) | 300 3 axes 6 directions 3 times each |
| Ambient Relative Humidity (RH) | 25 to 85 |
| Setting Value | Minimum unit: 1min unit |
| M Code | 46628531 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 27 June 2022 |
| Terakhir Diperbaharui | 02 October 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Withstand VoltageAC2950V 50 / 60Hz 1min (between conductive part terminal and exposed non-charged metal part)
AC2000V 50 / 60Hz 1min (between operation power circuit and control output, between control outputs)
1000 VAC 50/60 Hz for 1 min (between non-continuous contacts)
Display
Day of the week, hour (24h display ⇔ AM/PM12h display switching), minute, second (0:00 to 23:59, AM0:00 to 11:59/PM0:00 to 11:59) Digital display by LCD (character height 15 mm) ) Digital display during operation and scheduled operation time Time chart display during operation and scheduled operation time
Service Life
Mechanical: 100,000 times or more Electrical: 50,000 times or more (resistive load AC250V 15A) 50,000 times or more (resistive load DC30V 10A) 50,000 times or more (inductive load AC250V 10A cosΦ=0.7) 50,000 times or more (motor load AC250V 1HP) 50,000 times or more (Lamp load AC100V 100W) 10,000 times or more (Lamp load AC100V 300W)
