Independent day-of-week key adoption greatly improves operability.
Equipped with a holiday setting function that easily turns off the output of holidays and holidays.
Can be set even when the power is off.
Test mode for easy program confirmation.
Conforms to UL / CSA, Electric Safety Law standards, and EMC standards.
The set value can be changed in the down direction, realizing speed setting!
Built-in time counter / total counter.
Equipped with a puncture function that can switch programs by external input.
Built-in temperature compensation circuit that realizes high clock accuracy over a wide temperature range.

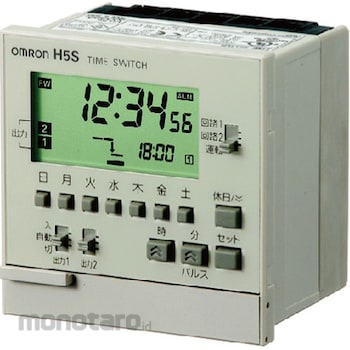

OMRON Digital Time Switch H5S
#Grup produk P106895939
Sebelum PPN:
Rp4.699.900 - Rp9.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Vibration Resistance (Destruction) | 10 to 55Hz, single amplitude 0.375mm, 3 directions, 2ch each |
|---|---|
| Ambient Relative Humidity (RH) | 25 to 85 |
| Type of Operation | Digital quartz system |
| Case Color | Light gray (Munsell 5Y7 / 1) |
| Impact Resistance Durability (m/s²) | 300 3 axes 6 directions 3 times each |
| Influence of Voltage | ± 0.01% ± 0.05s or less ± 0.01% is the value for the set time interval |
| Insulation Resistance (MΩ) | 100 or more Between conductive part terminals and exposed non-charged metal parts, between operation power supply circuit and control output, between control outputs, between non-continuous contacts |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| Setting Value | Minimum unit: 1min unit |
