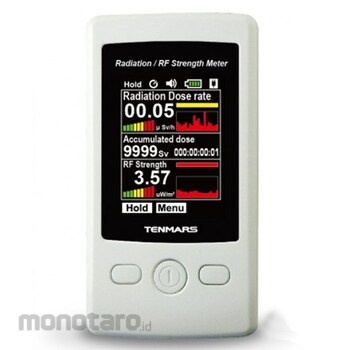

Tenmars Radiation Meter TM-93 1unit

Name: Tenmars Radiation Meter TM-93 1unit
Brand: Tenmars
SKU: S031693295
Price: 26999900 IDR
Availability: OutOfStock

#Nomor SKU S031693295

Tenmars

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	TM-93
Unit	1unit
Sensor	Radiation Dose Rate and Dose : Radiation sensor geiger-mueller tube; RF Strength : RF sensor Single axis sensor
Measurement Range	Radiation Dose Rate and Dose : 0.05µSv/h~1400µSv/h 5.00µRem/h~140mµRem; RF Strength : 0.1 ~ 14.0 V/m
Accuracy	Radiation Dose Rate and Dose : ±15% Cesium-137; RF Strength : ±2dB at 2.45GHz
Dimension (LxWxH) (mm)	115x60x31
Sample Rate	Radiation Dose Rate and Dose : 1 time/10 sec or 1 time/40 sec; RF Strength : 1 times/10 sec
Resolution	Radiation Dose Rate and Dose : 0.01µSv/h 0.01µRem/h; RF Strength : 0.01µW/m²,0.01µW/cm², 0.2mV/m,0.02mA/m, 2dB
Frequency Range	50MHz to 3.5GHz
Range	Radiation Dose Rate and Dose : Gamma energy 10KeV~1.25 MeV, X-rays energy 3KeV~3.0 MeV, β-beta energy 25KeV~3.5 MeV; RF Strength : (0.02uW/m² to 484.6uW/m²) (0.01uW/cm² to 45.3uW/cm²) (36.1mV/m to13.90V/m) (0.01mA/m to 30.01mA/m) (-46dBm to 16dBm)
Dose Logger Interval	1~999 days
Berat (Kg)	0.1
Tanggal Produk Terdaftar	11 May 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

- Radiation dose rate measurement.
- CPS/CPM: Geiger Counter count per second (CPS) count per minute(CPM).
- RF strength measurement

Feature

- 2.4inch 240x320 resolution color TFT,4 digital maximum display 3999.
- Radiation dose rate unit: µSv/h or µRem/h.
- Radiation dose unit:µsv or µRem.
- RF Strength unit: Wave power density (uW/m² / mW/m²), wave power density (μW/cm²), electric field strength (mV/m / V/m), magnetic field strength (mA/m),power strength (dBm) five options.
- Radiation dose and RF strength bar graph display.
- Radiation dose and RF strength historical figure display: 20-set display

Use

- Radiation dose rate measurement.
- CPS/CPM : Geiger Counter count per second (CPS) or count per minute(CPM).
- RF strength measurement.
- Languages : English; Traditional Chinese; Simplified Chinese; Japanese; Español.
- Radiation dose rate alarm setting.
- RF strength warning range settings.
- Radiation dose rate audible alert measurement.
- Calibration factor.
