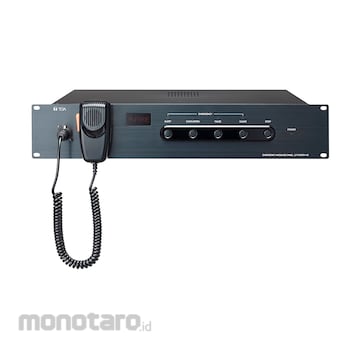

TOA Emergency Message Panel Z-FV200EV-AS 1unit
Rp11.999.900
Persediaan
Spesifikasi Produk
| Model Number | Z-FV200EV-AS |
|---|---|
| Unit | 1unit |
| LED Indicator | Power (Green), Fire (Red), Alert announcement (Green), Evacuation announcement (Green), False announcement (Green), Clear announcement (Green), USB (Green) |
| Control Input | FA Input : No-voltage make contact input, Open voltage : 24 V DC, Short-circuit current: Under 5 mA, Removable terminal block (2pins) |
| Accessories | Removable terminal plug (2 pins) x 7, Fireman's Microphone x 1, Instruction Manual x 1 |
| Emergency Announcement | Alert (repeated continuously), Evacuation (repeated continuously), False (repeated continuously), and Clear (repeated continuously) |
| Emergency Warning Language | Indonesian (default) |
| Wave Format | 44.1 kHz sampling frequency, 16 bit PCM (monaural) |
| Recording System | USB data transfer from rear panel |
| Maximum Recording Time (minute) | 6 (use built in memory) |
| Operation | Alert announcement button, Evacuation announcement button, False announcement button, Clear announcement button, Stop announcement button |
| Operating Temperature (°C) | 0 to +40 |
| Frequency Response (Hz) | 20-20000, ±3 dB, 1000 |
| Dimensions (WxHxD) (mm) | 482x100x396.7 |
| Power Source | Usable Power Supply Unit: FV-200PS; 24 V DC (operating range: 19.5 - 27 V), M3 screw terminal |
| Finish | Front Panel : Aluminium, Black, Alumite |
| Distortion | Under 1% (1 kHz, rated output) |
| Current Consumption (mA) | 250 |
| Control Output | Control output : Relay contact output x 4, rated voltage : 24 V DC, Removable terminal block (2 pins) |
| Operating Humidity (%RH) | Under 90 (no condensation) |
| Audio Input/Output | IN : Fireman's microphone: -55 dB, 600 Ω, unbalanced, XLR-3P connector; OUT : EV : -20 dB, unbalanced, Removable terminal block (2 pins) |
| Berat (Kg) | 4.3 |
| Tanggal Produk Terdaftar | 27 April 2022 |
| Terakhir Diperbaharui | 07 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Z-FV200EV-AS Emergency Message Panel is the emergency broadcast operating section of the Z-FV200 Series Emergency Public Address System. It need not be installed when the system is used solely for general broadcasting purpose. It has facilities to manually start and reset emergency broadcasts. Emergency announcements are recorded in Indonesian (default settings), which can be changed by USB data transfer operations from rear panel.
