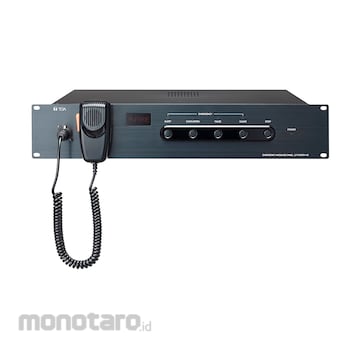

TOA Emergency Message Panel
#Grup produk P106756162
Spesifikasi
| LED Indicator | Power (Green), Fire (Red), Alert announcement (Green), Evacuation announcement (Green), False announcement (Green), Clear announcement (Green), USB (Green) |
|---|---|
| Control Input | FA Input : No-voltage make contact input, Open voltage : 24 V DC, Short-circuit current: Under 5 mA, Removable terminal block (2pins) |
| Accessories | Removable terminal plug (2 pins) x 7, Fireman's Microphone x 1, Instruction Manual x 1 |
| Emergency Announcement | Alert (repeated continuously), Evacuation (repeated continuously), False (repeated continuously), and Clear (repeated continuously) |
| Emergency Warning Language | Indonesian (default) |
| Wave Format | 44.1 kHz sampling frequency, 16 bit PCM (monaural) |
| Audio Input/Output | IN : Fireman's microphone: -55 dB, 600 Ω, unbalanced, XLR-3P connector; OUT : EV : -20 dB, unbalanced, Removable terminal block (2 pins) |
| Control Output | Control output : Relay contact output x 4, rated voltage : 24 V DC, Removable terminal block (2 pins) |
| Current Consumption (mA) | 250 |
| Dimensions (WxHxD) (mm) | 482x100x396.7 |
| Distortion | Under 1% (1 kHz, rated output) |
| Finish | Front Panel : Aluminium, Black, Alumite |
| Frequency Response (Hz) | 20-20000, ±3 dB, 1000 |
| Maximum Recording Time (minute) | 6 (use built in memory) |
| Operating Humidity (%RH) | Under 90 (no condensation) |
| Operating Temperature (°C) | 0 to +40 |
| Operation | Alert announcement button, Evacuation announcement button, False announcement button, Clear announcement button, Stop announcement button |
| Power Source | Usable Power Supply Unit: FV-200PS; 24 V DC (operating range: 19.5 - 27 V), M3 screw terminal |
| Recording System | USB data transfer from rear panel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Z-FV200EV-AS Emergency Message Panel is the emergency broadcast operating section of the Z-FV200 Series Emergency Public Address System. It need not be installed when the system is used solely for general broadcasting purpose. It has facilities to manually start and reset emergency broadcasts. Emergency announcements are recorded in Indonesian (default settings), which can be changed by USB data transfer operations from rear panel.
