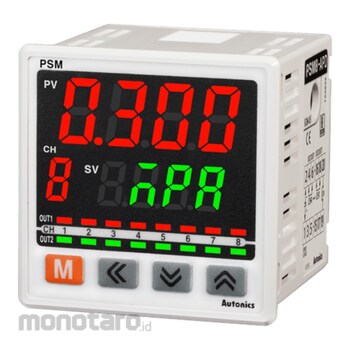

Autonics Pressure Sensors PSM Series PSM8-APD 1pc
Rp3.499.900
Persediaan
Spesifikasi Produk
| Model Number | PSM8-APD |
|---|---|
| Unit | 1pc |
| Power Supply (V) | 12-24 DC ±10% (ripple P-P: Max. 10%) |
| Input Method | DC4-20mA |
| Current Consumption (mA) | Max. 100 (add 20 for RS485 communication) |
| Power Consumption (W) | Max. 3 |
| Hysteresis Control Output | Min. display interval |
| Control Output Repeat Error | ±0.1% F.S. ±min. display interval |
| Response Time Control Output (ms) | 5, 100, 500, 1000 |
| Display Pressure Range | Depending on pressure type, pressure unit (refer to ' Rated Pressure and Max. Display Pressure Range') |
| Power for External Sensor (V/mA) | 12-24 DC/40, for each channel (Max. current 1-4CH: Max. 100mA, Max. current 5-8CH: Max. 100mA) |
| Protection Circuit Control Output | Short circuit protection circuit, reverse polarity protection circuit |
| Display Digit | PV display part, SV display part: 4-digit, channel display part: 1-digit |
| Output Indicator Display Method | 16 (Out1, Out2: 8 for each) |
| Temperature Display Control Output (°C) | 0-50: ±0.2% F.S. ±2-digits (based on 25), -10 to 0: ±0.3% F.S. ±2-digit |
| Input Connection | Sensor connector terminal (for CNE-P04, sold separately) |
| Output Connection | 20-pin hirose connector terminal (HIF3BA-20D-2.54R, 20-wire flat cable, sold separately) |
| Display Method | 7-segment LCD method; PV display part: Red or Green; SV display stion :Green; Channel display part: Red |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The PSM series multi-channel pressure indicators can display up to 4 or 8 channels of measured values from analog pressure sensors. When used with PSS series pressure sensors, the units can automatically identify the sensor models, pressure type and range without requiring additional configuration. Users can also easily copy parameters between channels, and the Auto Shift function allows stable output by adjusting the determined pressure level to match the change in pressure in reference to the original pressure.
Warning
Current consumption: Execpt current consumption of sensor part. When all output LED are ON, it is max. 120mA.Power supply for sensor: Do not short +V and 0V of sensor connector. It may cause break inner circuit.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
