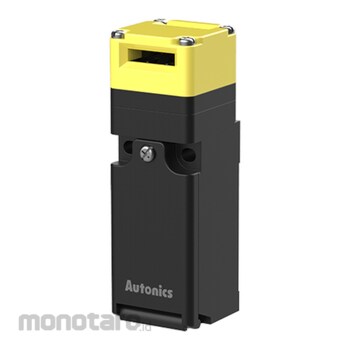

Autonics Safety Door Switch SFD Series SFD-A2B-G1/2 1pc
Rp539.900
Persediaan
Spesifikasi Produk
| Model Number | SFD-A2B-G1/2 |
|---|---|
| Unit | 1pc |
| Malfunction Vibration (mm) | 0.75 amplitude at frequency of 10-55Hz (for 1min) in each X,Y,Z direction for 10min |
| Standard Protection | IP67 (IEC Standard, kecuali bagian head) |
| Insulation Resistance (MΩ) | 100 or more (500VDC megger base) |
| Connection Type | Connector Cable G1/2 |
| Environment Temperature Level (°C) | -30 to 70, enclosed space: -40 to 70 |
| Humidity Level | 35-90%RH, enclosed space: 35-90%RH |
| Cables Used | AWG 20-18 (0.50-0.75mm²) |
| Directing Opening Force (N) | Min. 80 |
| Directing Opening Distance (mm) | Min. 10 |
| Operating Speed (m/s) | 0.05-1.00 |
| Operating Frequency per minute | Max. 20 |
| Mechanical life | Min. 1000000 operations |
| Vibration (m/s²) | 1000 (approx. 100G) in each direction X, Y, Z 3 times |
| Load Voltage and Current Range (A/V) | Resistive load: 6/250 AC, 0.6/250 DC; inductive load: AC-15 3/240 AC, DC-13 0.27/250 DC |
| Dielectric Strength Between Each Terminal and Non-Live Part (kV) | 5 |
| Contact Resistance (miliΩ) | Max. 50 (initial value) |
| Short Circuit Current (A) | 100 |
| Dielectric Strength Between Terminals (kV) | 2 |
| Electric Life | Min. 100000 operations (240VAC-6A) |
| Malfunction Shock (m/s²) | 300 (approx. 30G) in each direction X, Y, Z 3times |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The SFD series safety door switches can detect opening and closing of doors in machines. The head can be rotated to change the insert direction of the operation key from 5 directions, with 6 available operation key types. Also, the door switches are available in terminal type and connector type models, making it easier for installation in diverse application settings.The SFD series safety door switches can detect opening and closing of doors in machines. The head can be rotated to change the insert direction of the operation key from 5 directions, with 6 available operation key types. Also, the door switches are available in terminal type and connector type models, making it easier for installation in diverse application settings.Image on this page only as Representative Image, Please check the specifications of each size and color for details
