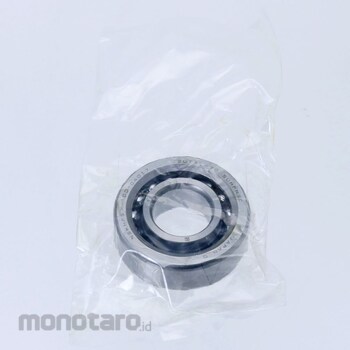

NSK Ball Screw Support Bearing 20TAC47CSUHPN7C 1pc

#Nomor SKU S031032612

Spesifikasi Produk

Model Number	20TAC47CSUHPN7C
Unit	1pc
Inner Diameter d (Φmm)	20
Reference Mass (g)	135
Allowable Oil Lubrication Rotation Speed (rpm)	9200
Width B (mm)	15
Outer Diameter d (mm)	47
Limit axial load (kN))	(When receiving axial load in one column) 26.6 (When receiving axial load in two columns) 53 (When receiving axial load in three columns) 79.5
Allowable Grease Lubrication Rotation Speed (rpm)	6900
Accuracy	NES CLASSC class 7C (axial run-out P2 equivalent)
Chamfer dimension r1 (mm)	0.6
Symbol of internal clearance preload	H (heavy preload)
Basic Dynamic Load Rating (kN)	(When receiving axial load in one column) 23 (If you receive an axial load in two columns) 37.5 (When receiving axial load in three columns) 49.5
Type	Universal combination (single unit)
Chamfering Size r (mm)	1
M Code	68998703
Berat (Kg)	0.1
Tanggal Produk Terdaftar	17 March 2022
Terakhir Diperbaharui	15 August 2025
