Oiles Drymet LF is a non-lubricated bearing consisting of three layers: filled ethylene tetrafluoride resin layer, bronze sintered layer, and back metal.
It can be used without lubrication, and it can be made thin and light and compact.
Stable low coefficient of friction under high load and low speed conditions and excellent wear resistance.
When lubricating oil is used in combination, it can be used with a high PV value even in the medium to high speed range.
It can be used in a wide temperature range from low to high temperature and has excellent chemical resistance.
Excellent in step stability, mechanical strength, and thermal conductivity.

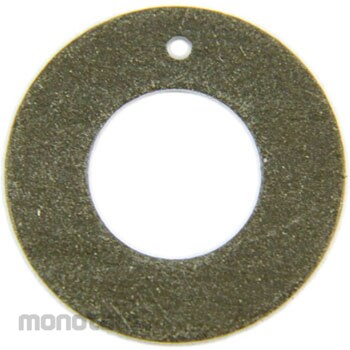

OILES Drymet Lf Washer LFW-1215 1set(4pcs)
Rp149.900
Persediaan
Spesifikasi Produk
| Model Number | LFW-1215 |
|---|---|
| Unit | 1set(4pcs) |
| Knock pin position (P.C.D) (mm) | 18(±0.12) |
| Knock pin hole H (mm) | 1.5(+0.125 - +0.375) |
| Inner Diameter Tolerance | 0-(+0.25) |
| Allowable Maximum Speed (m/s) | 0.65 |
| Allowable Maximum Surface Pressure P (N/mm²) | 49 |
| Allowable PV Value (N/mm² m/s) | 3.6 |
| Outer Diameter Tolerance (mm) | 0 to -0.25 |
| Lubrication System | No lubrication |
| Thickness T (mm) | 1.5 |
| Inner Diameter d (Φmm) | 12 |
| Outer Diameter d (mm) | 24 |
| Thickness Tolerance (mm) | -0.03 - (-0.08) |
| Operating Temperature Range (°C) | (-200) - (+280) |
| M Code | 35513012 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 16 March 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
It can be used without refueling, is thin, lightweight, and can be made compact.It shows a stable low coefficient of friction under high load and low speed conditions, and has excellent wear resistance.
When lubricating oil is used together, it can be used with a high PV value even in the medium and high speed range.
It can be used in a wide temperature range from low temperature to high temperature, and has excellent chemical resistance.
Has excellent dimensional stability, mechanical strength, and thermal conductivity.
