Oiles Drymet LF is a non-lubricated bearing consisting of three layers: filled ethylene tetrafluoride resin layer, bronze sintered layer, and back metal.
It can be used without lubrication, and it can be made thin and light and compact.
Stable low coefficient of friction under high load and low speed conditions and excellent wear resistance.
When lubricating oil is used in combination, it can be used with a high PV value even in the medium to high speed range.
It can be used in a wide temperature range from low to high temperature and has excellent chemical resistance.
Excellent in step stability, mechanical strength, and thermal conductivity.

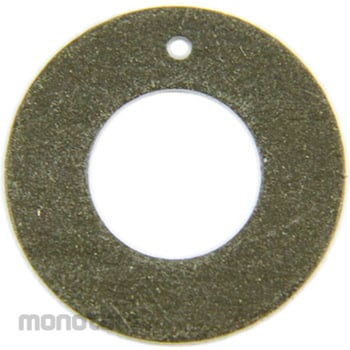

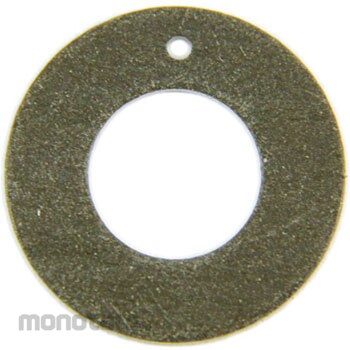

OILES Drymet Lf Washer
#Grup produk P106585379
Spesifikasi
| Inner Diameter Tolerance | 0-(+0.25) |
|---|---|
| Allowable Maximum Speed (m/s) | 0.65 |
| Outer Diameter Tolerance (mm) | 0 to -0.25 |
| Lubrication System | No lubrication |
| Thickness T (mm) | 1.5 |
| Thickness Tolerance (mm) | -0.03 - (-0.08) |
| Operating Temperature Range (°C) | (-200) - (+280) |
| Allowable Maximum Surface Pressure P (N/mm²) | 49 |
| Allowable PV Value (N/mm² m/s) | 3.6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
It can be used without refueling, is thin, lightweight, and can be made compact.It shows a stable low coefficient of friction under high load and low speed conditions, and has excellent wear resistance.
When lubricating oil is used together, it can be used with a high PV value even in the medium and high speed range.
It can be used in a wide temperature range from low temperature to high temperature, and has excellent chemical resistance.
Has excellent dimensional stability, mechanical strength, and thermal conductivity.
