The rotational force of the air motor is amplified at the speed reduction part, and the screw is tightened with the torque generated by the meshing and striking operation of the clutch adjusted by the spring.
Less reaction due to intermittent torque.
Building material furniture, weak electricity, etc.

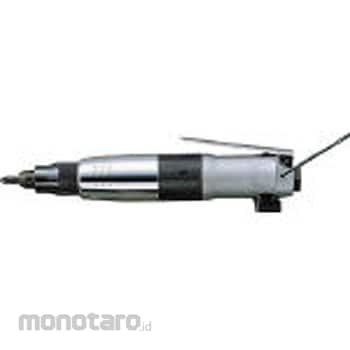

Uryu Cushion Clutch Driver US-3.5A 1pc
Rp9.099.900
Persediaan
Spesifikasi Produk
| Model Number | US-3.5A |
|---|---|
| Unit | 1pc |
| Exhaust Direction | Side |
| Hose connection | Rc1/8 |
| Air Consumption (m³/minute) | 0.2 |
| Rotation Speed at No-load (rpm) | 2000 |
| Suitable Air Pressure (MPa) | 0.4 |
| Screw Tightening Capacity (mm) | 4 |
| Maximum Tightening Torque (N m) | 2 |
| Chuck | Bit band type |
| Outlet (mm) | 5 |
| Overall Length (mm) | 196 |
| M Code | 36991656 |
| Berat (Kg) | 0.6 |
| Tanggal Produk Terdaftar | 16 March 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
The rotational force of the air motor is amplified by the deceleration part, and the screw is tightened with the torque generated by the engagement and impact operation of the clutch adjusted by the spring.There is little recoil due to the intermittent torque.
When the tightening torque is reached with the deceleration type, the movement of the camshaft shuts off the air and the operation is stopped.
