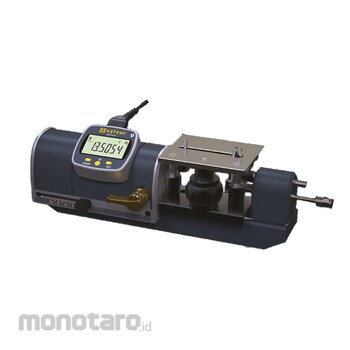

SYLVAC Bench Table PS16 V2 808-1234 LV Internal Only 18-68mm 1pc

- Measuring bench similar to the PS16 V2 bench, but equipped with a table and anvils assembly allowing to mea sure large internal diameters up to 74 mm.
- Originally designed for measuring watch cases, it is also suitable for measuring rings and thin parts.
- 2-point measurement with positioning of the workpiece in the measuring axis by 2 movable centring pins
- Table height adjustable by up to 20 mm (a mini dial indicator can be mounted on the table to check its movement)
- Available in 3 versions :
- 808-1233: version for measuring internal diameters from 12 to 62 mm
- 808-1234: execution for measuring internal diameters 24 to 74 mm
- 808-1235: special version for measuring outside diameters 0 to 50 mm
- Supplied with 0.4 mm thick measuring anvils.
