Note1) Dynamic load rating is based of the nominal life 50km.
In case of 100km, C on the table need to be divided by 1.26
Ex) LM12's 50km basis dynamic load rating C=410N
LM12's 100km basis dynamic load rating C100=410 / 1.26=325.40N
Note2) Based on the weight of resin retainer
Note4) Outer diameter is the obtained value before slotting process
SAMICK Linear Bushing Bearing (Linear Bearing) LM30UU-OP 1pc
Rp289.900
Persediaan
Spesifikasi Produk

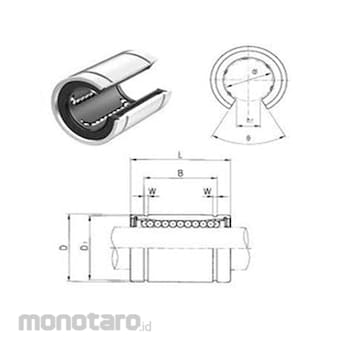

| Model Number | LM30UU-OP |
|---|---|
| Unit | 1pc |
| Nominal Shaft Diameter (mm) | 30 |
| Diameter dr. (mm) | 30 |
| Dimensions d (mm) | 45 |
| Dimension L (mm) | 64 |
| Dimension B (mm) | 45 |
| Dimension W (mm) | 1.85 |
| Dimensions h1 (mm) | 15 |
| Angle (degree) | 50 |
| Basic Load Rating Dynamic (mm) | 1560 |
| Basic Load Rating Statistic (mm) | 2740 |
| No. Of Ball Circuit | 5 |
| Weight (gf) | 250 |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 31 January 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
