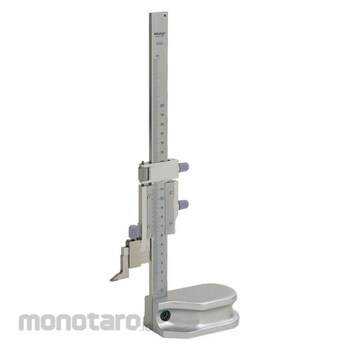

Mitutoyo VERNIER HEIGHT GAGE 200/0.02MM 506-207 H4-20 1pc

Name: Mitutoyo VERNIER HEIGHT GAGE 200/0.02MM 506-207 H4-20 1pc
Brand: Mitutoyo
SKU: S030192386
Price: 4099900 IDR
Availability: OutOfStock

#Nomor SKU S030192386

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	506-207
Unit	1pc
Units	Metric
Range (mm)	0-200
Accuracy (mm)	±0.03
Graduation (mm)	0.02
Optional Accessories	900322, 953639
Technology	Mechanical
Standard Accessories	900173, 901338
Mitutoyo Part Number	H4-20
M Code	01992916
Berat (Kg)	2.3
Tanggal Produk Terdaftar	13 December 2021
Terakhir Diperbaharui	17 November 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Mitutoyo lightweight Vernier height gage is ideal for small parts and offers portability without sacrificing accuracy or durability. The slider and beam are constructed of hardened stainless steel, and the beam is adjustable with a ring-type lock nut to support repositioning of the zero reference point. The hand-operated slider features a fine-adjustment carriage with a calibrated screw mechanism for fine, uniform slider adjustments. The Vernier second sliding scale provides measurements between marks on the main scale for ultra-precise readings.

Warning

Feature

Available in Metric and Inch models
Optional magnifier is available for easier reading
Zero reference point can be adjusted for manual change of the base position
Scriber is carbide tipped for accuracy and durability
Scales have a satin chrome finish to reduce glare for easier reading
Base is shaped to allow a secure grip
Fine feeding carriage provides precise measurements
