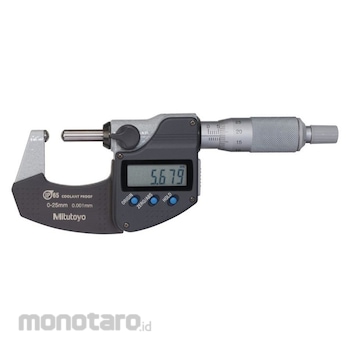

Mitutoyo Digital Tube Micrometer Metric Spherical Anvil and Spindle 395-271-30 BMD-25MX 25/0.001mm 1pc

Name: Mitutoyo Digital Tube Micrometer Metric Spherical Anvil and Spindle 395-271-30 BMD-25MX 25/0.001mm 1pc
Brand: Mitutoyo
SKU: S030188235
Price: 4399900 IDR
Availability: InStock

#Nomor SKU S030188235

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	395-271-30
Unit	1pc
Units	Metric
Range (mm)	0-25
Resolution (mm)	0.001
Accuracy (µm)	±2
Graduation (mm)	0.01
Anvil/Spindle	S-S
Flatness (µm)	0.3
Remarks (mm)	D: 15
Battery	SR44 (1 pc.) 938882
Battery Life	Approx. 2.4 years under normal use
Display	LCD
Optional Accessories	05CZA662, 05CZA663
Technology	Digimatic
SPC Output	Yes
IP Rating	IP65
Ratchet/Thimble	Rachet Stop
Mitutoyo Part Number	BMD-25MX
M Code	18483167
Berat (Kg)	1.0
Tanggal Produk Terdaftar	13 December 2021
Terakhir Diperbaharui	21 January 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Mitutoyo digimatic digital spherical micrometer is available with either a spherical face on the anvil and a flat spindle measuring surface or with spherical measuring surfaces on the anvil and spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error. The micrometer has a measurement range of 0 to 1.0″ (0 to 25.4mm), resolution of 0.00005″ (0.001mm), and an accuracy of +/- 0.0001″

Warning

Feature

'- Available in Metric and Inch/Metric models
- Available with spherical anvil and flat spindle or with spherical anvil and spherical spindle
- Designed to measure the wall thickness of various tubing, curved parts and pipe wall thickness
- Spherical measuring faces are 0.59” in diameter and carbide-tipped for durability
- IP65 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for most shop floor environments
- Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant force
- SPC output function allows for quick and easy data management in real time
- Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a non-slip finish for better grip in shop environments
- Includes a standard bar except for 0-1” and 0-25mm models
- Supplied in fitted plastic case
