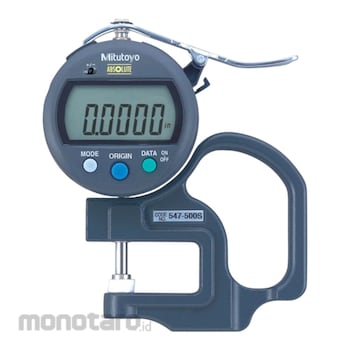

Mitutoyo Thickness Gage 547-500S 0.47inch/.01mm 1pc
Rp5.199.900
Persediaan
Spesifikasi Produk
| Model Number | 547-500S |
|---|---|
| Unit | 1pc |
| Range (inch) | 0-0.47 / 0-12mm |
| Resolution (inch) | 0.0005 / 0.01mm |
| Accuracy (inch) | ±0.001 |
| Indicator Type | Digimatic IDS |
| Measuring Force (N) | 1.5 or less |
| Spindle Material | Ceramic |
| Anvil Material | Ceramic |
| Optional Accessories | 905338, 905409, 902794 |
| Battery | SR44 (1pc.) 938882 |
| Battery Life | Approx. 20,000 hours under normal use |
| Display | LCD |
| Technology | Digimatic |
| SPC Output | Yes |
| Units | Inch, Metric |
| Standard Accessories | 21AZB149 |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 13 December 2021 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Mitutoyo flat anvil ABSOLUTE thickness gage can measure the thickness of a wide range of materials and objects including paper, film, wire, sheet metal and other similar materials. These flat anvil thickness gages utilize the Mitutoyo ID-C and ID-S Digimatic indicators to provide error-free LCD readings. The grip handle, easy-to-reach lifting lever and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy.
Feature
Metric/Inch models availableAvailable with deep-throated frames
Available with SPC output capabilities
Spindles and anvils on most models are constructed with ceramic for better corrosion resistance
Carbide contact points are available on model 547-400S
Signal can be output to external device; waterproof data output connector protects against dust, water and oil ingress
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
SPC output function allows for quick and easy data management in real time
Unlimited response speed eliminates over-speed errors
Measuring force is 1.5N or less
Supplied in a fitted plastic case
