Mitutoyo Analog Micrometer Head Metric Small Type 148-804 MHS4-13L 0-13/0.01mm 1pc

Name: Mitutoyo Analog Micrometer Head Metric Small Type 148-804 MHS4-13L 0-13/0.01mm 1pc
Brand: Mitutoyo
SKU: S030183551
Price: 1199900 IDR
Availability: OutOfStock

#Nomor SKU S030183551

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	148-804
Unit	1pc
Units	Metric
Range (mm)	0-13
Accuracy (µm)	±2
Graduation (mm)	0.01
Measuring Faces	Spherical (SR4)
Stem Diameter (mm)	9.5
STEM	w/clamp nut
Spindle Pitch (mm)	0.5
Spindle Lock	Yes
Technology	Mechanical
Scale Surface	Hard chrome plating
Mitutoyo Part Number	MHS4-13L
Berat (Kg)	1.0
Tanggal Produk Terdaftar	13 December 2021
Terakhir Diperbaharui	06 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

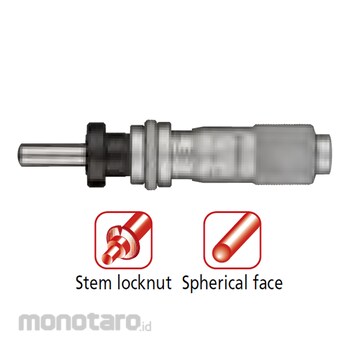

The Mitutoyo standard micrometer head comes in a smaller size to fit tighter spaces while providing accurate placement and measurements. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.

Feature

Available in Metric and Inch models
Smaller size mic head has a 13mm thimble diameter
Spindle range is 13mm / .5”
Mounting stem diameter is 9.5mm / .375”
Spindle diameter is 5mm / .197”
Mic head total lengths (at stroke end) are 71.5mm / 2.81” and 80.1mm / 3.15”
Reverse reading is available on some models
Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel and are available in spherical or flat types
Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
Spindle screw threads are precision machined for incredibly precise movements
