Mitutoyo Analog Holtest Three-point Internal Micrometer Metric 368-172 HT-88R 75-88/0.005mm 1pc

Name: Mitutoyo Analog Holtest Three-point Internal Micrometer Metric 368-172 HT-88R 75-88/0.005mm 1pc
Brand: Mitutoyo
SKU: S030183018
Price: 9999900 IDR
Availability: OutOfStock

#Nomor SKU S030183018

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	368-172
Unit	1pc
Units	Metric
Range (mm)	75-88
Graduation (mm)	0.005
Accuracy (µm)	±4
Contact point	TiN coating
Measuring Method	Three-point method
Extension Rod (Optional)	952623
Technology	Mechanical
Ratchet/Thimble	Ratchet Stop
Mitutoyo Part Number	HT-88R
M Code	50785956
Berat (Kg)	1.0
Tanggal Produk Terdaftar	13 December 2021
Terakhir Diperbaharui	27 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Mitutoyo mechanical Holtest internal micrometer features three hardened-steel anvils evenly spaced at 120° for true alignment of the axis bore for accurate, easily repeatable measurements. Contact points are coated with Titanium Nitride (TiN)* for added durability and precision. The holtest’s ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.

Feature

Available in Metric and Inch models
Optional extension rod allows for measuring deep holes
Optional setting rings for zero point adjustment are available
Scale on thimble and sleeve is laser etched for easier reading in all conditions

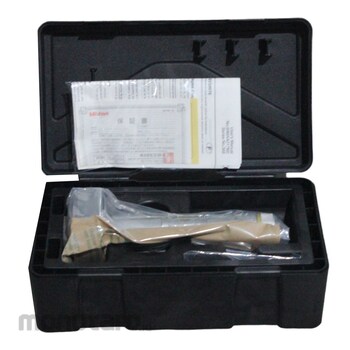

Holtests up to 100mm / 4″ diameter measurements supplied in a fitted plastic case
Holtests over 100mm / 4″ diameter measurements supplied in a wooden case
