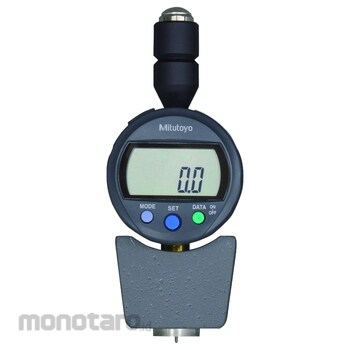

Mitutoyo Digital Durometer 811-336-11 H-336-01 1pc

Name: Mitutoyo Digital Durometer 811-336-11 H-336-01 1pc
Brand: Mitutoyo
SKU: S030181281
Price: 20999900 IDR
Availability: InStock

#Nomor SKU S030181281

Mitutoyo

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	811-336-11
Unit	1pc
Model	HH-336
Display	Digital
Shore Scale	A
Applications	Natural Rubber, Soft Elastomers, etc.
Resolution	0.1
Range	33147
Standard	JIS K 6253, ASTM 2240, ISO 868, ISO 7619, JIS K 7215, DIN 53 505
Pressure Foot (Ømm)	18
Spring Force	WA=550+75HDmN
Indenter Tip Type	Blunt Taper
Indenter Tip Diameter (mm)	0.79
Indenter Diameter (mm)	1.25
Tip Angle (°)	35±0.25
Type	Compact
Dimensions (mm)	60x28.5x151
Digital Functions	Data Hold, Zero Setting, SPC Output, Power On-Off, SR44 Battery
Indenter Protrusion (mm)	2.5
Berat (Kg)	1.0
Tanggal Produk Terdaftar	13 December 2021
Terakhir Diperbaharui	31 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Mitutoyo Hardmatic digital and analog Durometer provides accurate, repeatable hardness test results on various soft materials from rubber and neoprene to leather and plastics. A data hold function (digital models) and peak retaining hand (on analog models) allows for error-free reading.

Feature

Units are available in both Shore A and Shore D scales and will test a wide variety of applications
LCD screen on digital models provides easy-to-read results
Data output function transfers measurements to PC or a printer (via optional RS-232 interface)
Designed in accordance with the ASTM D 2240, ISO868, ISO 7619, DIN 53 505, JIS K 6253, and JIS K 7215 specifications
