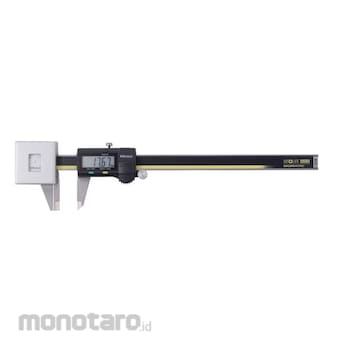

Mitutoyo Digital Caliper Lowforce (Jangka Sorong) 573-191-30 NTD25-20AX 180/.01mm 1pc

Name: Mitutoyo Digital Caliper Lowforce (Jangka Sorong) 573-191-30 NTD25-20AX 180/.01mm 1pc
Brand: Mitutoyo
SKU: S030180925
Price: 11999900 IDR
Availability: OutOfStock

#Nomor SKU S030180925

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	573-191-30
Unit	1pc
Units	Metric
Range (mm)	0-180
Resolution (mm)	0.01
Accuracy (mm)	±0.05
Battery	SR44 (1 pc.) 938882
Battery Life	Approx. 3.5 years under normal use
Display	LCD
Length Standard	ABSOLUTE electromagnetic induction type linear encoder
Maximum Response Speed	Unlimited
Optional Accessories	959143, 959149, 959150
Technology	Digimatic
SPC Output	Yes
Jaw Retraction (mm)	0.3
Maximum Measuring Force (N)	1
Min Measuring Force (N)	0.5
Mitutoyo Part Number	NTD25-20AX
M Code	11687926
Berat (Kg)	1.0
Tanggal Produk Terdaftar	13 December 2021
Terakhir Diperbaharui	06 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Mitutoyo ABSOLUTE Digimatic Low Force caliper uses a low measuring force to take highly accurate measurements of resilient workpieces that standard calipers cannot measure. The lower measuring force greatly reduces the compression of materials such as elastic, plastic and rubber, providing a more precise, repeatable measurement. A consistently low measuring force is guaranteed by only taking measurements when the pointer on the caliper is between two fiducial lines.

Warning

Feature

'- Available in Metric and Inch/Metric models
- Measures pieces that standard calipers cannot measure
- Range is 0-180mm/0-7” with accuracy rated at +/- 0.05mm
- SPC output function offers quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Constructed of hardened stainless steel for better durability and longevity
- Supplied in fitted plastic case
