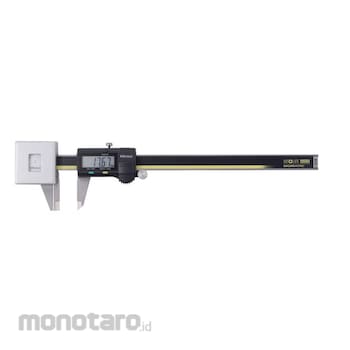

Mitutoyo Digital Caliper Lowforce (Jangka Sorong)
#Grup produk P106103768
Spesifikasi
| Units | Metric |
|---|---|
| Range (mm) | 0-180 |
| Resolution (mm) | 0.01 |
| Accuracy (mm) | ±0.05 |
| Battery | SR44 (1 pc.) 938882 |
| Battery Life | Approx. 3.5 years under normal use |
| Display | LCD |
| Jaw Retraction (mm) | 0.3 |
| Length Standard | ABSOLUTE electromagnetic induction type linear encoder |
| Maximum Measuring Force (N) | 1 |
| Maximum Response Speed | Unlimited |
| Min Measuring Force (N) | 0.5 |
| Mitutoyo Part Number | NTD25-20AX |
| Optional Accessories | 959143, 959149, 959150 |
| SPC Output | Yes |
| Technology | Digimatic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Mitutoyo ABSOLUTE Digimatic Low Force caliper uses a low measuring force to take highly accurate measurements of resilient workpieces that standard calipers cannot measure. The lower measuring force greatly reduces the compression of materials such as elastic, plastic and rubber, providing a more precise, repeatable measurement. A consistently low measuring force is guaranteed by only taking measurements when the pointer on the caliper is between two fiducial lines.
Feature
'- Available in Metric and Inch/Metric models- Measures pieces that standard calipers cannot measure
- Range is 0-180mm/0-7” with accuracy rated at +/- 0.05mm
- SPC output function offers quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Constructed of hardened stainless steel for better durability and longevity
- Supplied in fitted plastic case
