High reliability is ensured for the contact part by the gold plating and clip contact mechanism.
The terminal part is sealed with resin to prevent flux from entering.
Can be washed in a circle. (IP64 equivalent)
Compared with the conventional A9T, the overall length including the lever is 17mm → 11mm, which is about 35% lower. Contributes to miniaturization of equipment.
* The lever does not stop when the function is "-".
* The function operation indicates the operation when the marking surface is the front.

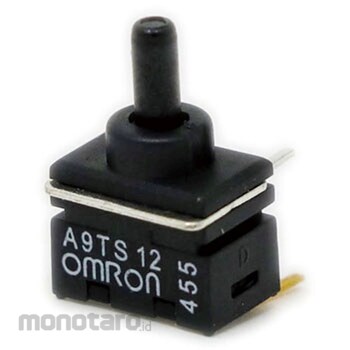

OMRON Ultra-Miniature Toggle Switch A9TS A9TS12-0012 1pc
Rp149.900
Persediaan
Spesifikasi Produk
| Model Number | A9TS12-0012 |
|---|---|
| Unit | 1pc |
| Functional Operation | ON-OFF-ON |
| Operating Temperature Range (°C) | -20 to +80, 60% RH or less (with no icing or condensation) |
| Circuit | Single pole double throw |
| Type of Terminal | Right angle terminal |
| Rating | (Resistance load) AC / DC 28V + 14mA, AC / DC 20mV + 0.1μA (minimum current) |
| Type | Switch type |
| Withstand Voltage | Between terminals and terminal ground 500 VAC for 1 min |
| Insulation Resistance (MΩ) | 500 or more (with DC500V insulation resistance tester) |
| Contact Resistance (miliΩ) | 80 or less (initial value) |
| Operating Force (N) | 4.9 or less |
| Ambient Relative Humidity (RH) | 45 to 85 (at +5 to 35 ° C) |
| Vibration | Malfunction: 10 to 55Hz, double amplitude 1.5mm |
| Durability | Mechanical / 50,000 or more, Electrical / 50,000 or more |
| AS ONE Part Number | 64-3340-78 |
| Shock Resistance Malfunction (m/s²) | 500 |
| M Code | 46502766 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 02 July 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
The lever does not stop for "-" of functional operation.Function operation represents the operation when the marking surface is in front of the marking surface.
Feature
The contact portion secures high reliability by gold-plated and clip contact mechanism.The terminal portion prevents the infiltration of the flux by resin encapsulation.
Round washing cleaning is possible. (IP64 equivalent)
Compared to the conventional type A9T, the entire length including the lever and the low tall of about 35% and about 35%. Contributing to miniaturization of equipment.
