High reliability is ensured for the contact part by the gold plating and clip contact mechanism.
The terminal part is sealed with resin to prevent flux from entering.
Can be washed in a circle. (IP64 equivalent)
Compared with the conventional A9T, the overall length including the lever is 17mm → 11mm, which is about 35% lower. Contributes to miniaturization of equipment.
* The lever does not stop when the function is "-".
* The function operation indicates the operation when the marking surface is the front.

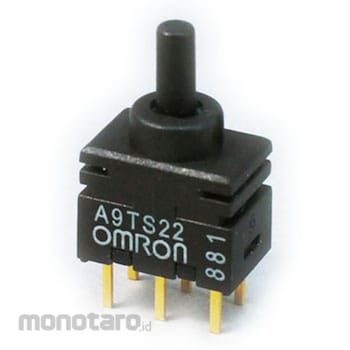

OMRON Ultra-Miniature Toggle Switch A9TS
#Grup produk P105956589
Spesifikasi
| Vibration | Malfunction: 10 to 55Hz, double amplitude 1.5mm |
|---|---|
| Ambient Relative Humidity (RH) | 45 to 85 (at +5 to 35 ° C) |
| Rating | (Resistance load) AC / DC 28V + 14mA, AC / DC 20mV + 0.1μA (minimum current) |
| Contact Resistance (miliΩ) | 80 or less (initial value) |
| Durability | Mechanical / 50,000 or more, Electrical / 50,000 or more |
| Insulation Resistance (MΩ) | 500 or more (with DC500V insulation resistance tester) |
| Operating Force (N) | 4.9 or less |
| Operating Temperature Range (°C) | -20 to +80, 60% RH or less (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 500 |
| Withstand Voltage | Between terminals and terminal ground 500 VAC for 1 min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
The lever does not stop for "-" of functional operation.Function operation represents the operation when the marking surface is in front of the marking surface.
Feature
The contact portion secures high reliability by gold-plated and clip contact mechanism.The terminal portion prevents the infiltration of the flux by resin encapsulation.
Round washing cleaning is possible. (IP64 equivalent)
Compared to the conventional type A9T, the entire length including the lever and the low tall of about 35% and about 35%. Contributing to miniaturization of equipment.
