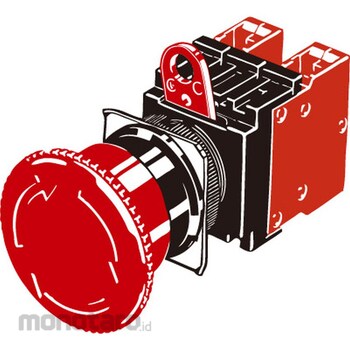

OMRON Pushbutton Switch for Emergency Stop (Diameter 22/Diameter 25) (Non-Illuminated) A22E A22E-M-11 1pc
Rp359.900
Persediaan
Spesifikasi Produk
| Model Number | A22E-M-11 |
|---|---|
| Unit | 1pc |
| Operation Mechanism | Medium push lock turn reset φ40 |
| Mounting Hole Diameter P (mm) | 22/25 |
| Impact Resistance Durability (m/s²) | 1000 |
| Vibration Resistance (Malfunction) | 10 to 55 Hz, 1.5 mm double amplitude (within 1 ms) |
| Electric Shock Protection Class | Class II |
| Electrical Durability | 300,000 times or more (once set or reset) |
| Mechanical Durability (times) | 300,000 or more (once set or reset) |
| Light Source | LED |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Allowable Operating Speed (times/minute) | Mechanical: 30, Electrical: 30 |
| Operating Temperature Range (°C) | -20 to +70 (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 250 or more (malfunction less than 1ms) |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Withstand Voltage | Between homopolar terminals, between each terminal and ground: 2500 VAC 50/60 Hz for 1 min. |
| Contact Configuration | 1a1b |
| Protection Class | IP65 oil resistant type |
| Storage Temperature (°C) | -40 to +70 (with no icing or condensation) |
| Type | Non-illuminated |
| PTI (Proof Tracking Index) | 175 |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| M Code | 38992782 |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Switch part with finger lock with safety lock mechanism to prevent accidental operation as standard equipment Crimp terminals can be mounted in either open (fork type) or closed (round) type
Feature
With safety lock mechanism to prevent erroneous operationStandard equipped with a switch unit with finger protection
The crimp terminal can be attached either opening (fork) or closure (round) .
