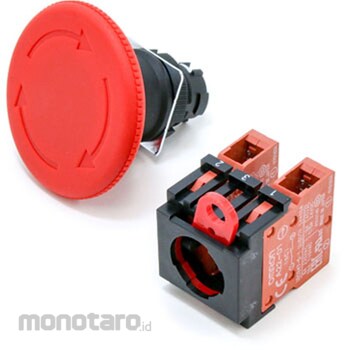

OMRON Pushbutton Switch for Emergency Stop (Diameter 22/Diameter 25) (Non-Illuminated) A22E
#Grup produk P105943895
Spesifikasi
| Electrical Durability | 300,000 times or more (once set or reset) |
|---|---|
| Electric Shock Protection Class | Class II |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Allowable Operating Speed (times/minute) | Mechanical: 30, Electrical: 30 |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability (times) | 300,000 or more (once set or reset) |
| PTI (Proof Tracking Index) | 175 |
| Protection Class | IP65 oil resistant type |
| Shock Resistance Malfunction (m/s²) | 250 or more (malfunction less than 1ms) |
| Storage Temperature (°C) | -40 to +70 (with no icing or condensation) |
| Type | Non-illuminated |
| Vibration Resistance (Malfunction) | 10 to 55 Hz, 1.5 mm double amplitude (within 1 ms) |
| Withstand Voltage | Between homopolar terminals, between each terminal and ground: 2500 VAC 50/60 Hz for 1 min. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Switch part with finger lock with safety lock mechanism to prevent accidental operation as standard equipment Crimp terminals can be mounted in either open (fork type) or closed (round) type
Feature
With safety lock mechanism to prevent erroneous operationStandard equipped with a switch unit with finger protection
The crimp terminal can be attached either opening (fork) or closure (round) .
