Small eye or lock type latching relay with manual button.
Realized miniaturization of 71mm in height, 42.5mm in width, and 48.5mm in depth. Moreover, it is 175g lightweight.
Set/Reset responds quickly with a pulse signal.
Using gold plating for the contacts, it has excellent high contact reliability.
Use an Omron PTF14A (for LY4 relay) socket.

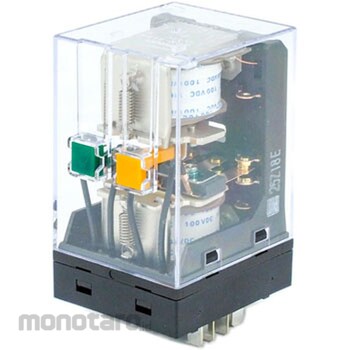

OMRON Latching Relay G7K G7K-412S-D-DC100 1pc
Rp2.599.900
Persediaan
Spesifikasi Produk
| Model Number | G7K-412S-D-DC100 |
|---|---|
| Unit | 1pc |
| Rated Voltage (V) | DC100 |
| Contact Resistance (miliΩ) | 50 or less (DC1V 10mA voltage drop method) |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC) |
| Ambient Relative Humidity (RH) | 5 to 85 |
| Return Voltage | 80% or less of rated voltage |
| Vibration Resistance (Durability) | 10 to 55 to 10 Hz, single amplitude 0.375 mm (double amplitude 0.75 mm) |
| Coil Rated Voltage (V) | DC100 |
| Vibration Resistance (Malfunction) | 10 to 22 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm) |
| Impact Resistance Durability (m/s²) | 300 |
| Operating Voltage | 80% or less of rated voltage |
| Number of Poles | 4 |
| Contact Configuration | 2c2a |
| Shock Resistance Malfunction (m/s²) | 30 |
| Type | Latching relay |
| Electrical Durability | 100,000 times or more (opening and closing frequency 1800 times / h) (at ambient temperature + 23 ° C) |
| Mechanical Durability | 300,000 times or more (opening and closing frequency 1800 times / h) |
| Protection Class | In a case |
| Terminal Shape | Plug-in terminal |
| M Code | 46658044 |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 02 October 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Small eyes or locked latching relay with manual button.Achieves miniaturization of 71 mm height, 42.5 mm wide, and 48.5 mm depth. Moreover, the light weight of 175 g.
Set reset is a pulsed signal.
The contact is used to use gold plating and is excellent in high contact reliability.
Use the socket of Omron's shape PTF14A (for type LY4 relay) .
