Small double-equipped limit switch with improved sealability, impact resistance and strength The double-seal structure of the rotary shaft of the limit switch is further strengthened, and sealability is secured by a gasket full cover system.
Wide temperature specifications (-40 to 100°C: standard type)
Adopts a block mount method that minimizes time loss during maintenance.
Acquired UL, CSA and CCC standards.

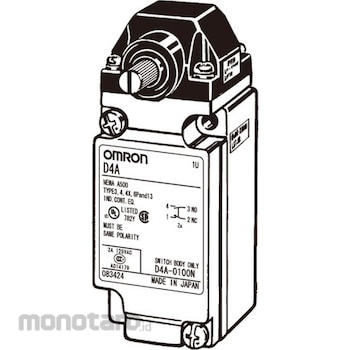

OMRON Compact Heavy Equipment Limit Switch D4a-N D4A-4R18N 1pc
Rp2.199.900
Persediaan
Spesifikasi Produk
| Model Number | D4A-4R18N |
|---|---|
| Unit | 1pc |
| Internal capacity | 1 piece |
| format | Shape D4A-4R18N |
| Product Number | D4A-4R18N |
| Type | Rotating Lever Type/center neutral Type |
| Type Of Actuator | Rotating lever type / center neutral type |
| Head Shape | Rotating Lever, center neutral operation Type (cannot be used for simultaneous operation of Switch box.) |
| Operation Indicator Lamp | LED(DC) |
| Protection Class | (Compliant) IP67, NEMA Standards 1, 2, 3, 4, 4X, 5, 6P, 12, 13 |
| Rated Frequency (Hz) | 50/60 |
| Temperature Rise (°) | 50 or less |
| Contact Resistance (miliΩ) | 25 or less (initial value) |
| Impact Resistance Durability (m/s²) | 1000 or m ore |
| Allowable Operating Speed (mm-m/s) | 1 to 2 (D4A-3101N, rotating lever type) |
| Ambient Relative Humidity (RH) | 35 to 95 (with no icing) |
| Electric Shock Protection Class | Class I (with ground terminal) |
| Electrical Durability | 750,000 times or more (4-circuit double-cut type: 125 VAC, 5 A resistive load) |
| Inrush Current (A) | (Normally closed circuit) up to 30A, (normally open circuit) up to 20A |
| Mechanical Durability (times) | 30 million or more (for 4-circuit double-break rotary lever type) *Excluding holding type. |
| Pollution Degree (Environment to Use) | 3 |
| Withstand Voltage | (Between terminals of the same polarity) 1000V AC 50/60Hz 1min (Between live metal parts and earth) 2200V AC 50/60Hz 1min (Between each terminal and non-current metal parts) 2200V AC 50/60Hz 1min |
| M Code | 46533006 |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 02 April 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Small heavy equipment limit switch with improved sealability, impact resistance, strength resistanceFurther strengthening the double seal structure of the rotating shaft portion and secures sealing performance by a gasket full cover method.
Wide temperature specification (-40 to 100°C: standard type)
A block mounting method is used to minimize time loss during maintenance.
UL, CSA, CCC Standard Acquisition.
