Mitsubishi Electric Time Switch TSE-2 Series (Timer Listrik) TSE-2DB 15A 1pc

PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.

*TSE-2SA type cannot change the operation time for each day of the week. If the operation time differs for each day of the week, use the TSE-2WA type.

One minute unit programs can be assembled. Maximum 16 points/day, Model TSE-2WA maximum 24 points/week.
Weekly control is available for TSE-2WA type.

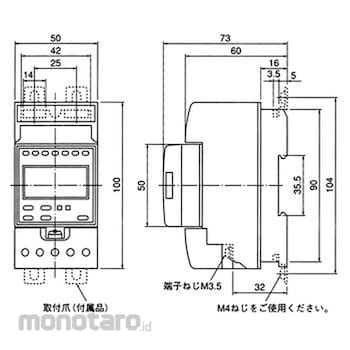

Since the external dimensions are the distribution board agreement size breaker (JIS C 8201-2-1 compliant) 50 mm width, it can be incorporated neatly into the distribution board. It can also be mounted on the IEC35mm rail of the control panel.
With lithium batteries, you can compensate for blackouts for 10 years (+20 degreesC blackout rate 50% or less) without charging.
Operations such as ON/OFF time correction and clock correction can be performed even during a power failure.
Since the display unit rotates 90 degrees to the left and right, the items displayed on the LCD can be read from the front even when the display panel is installed in the same direction as the breaker for the distribution board agreement.
Equipped with a test run function. If you press the cancel button and the minute button simultaneously for 3 seconds, you can check the operation of the program you have set. (Not only the display but the actual output works, so you can check more reliably.)
